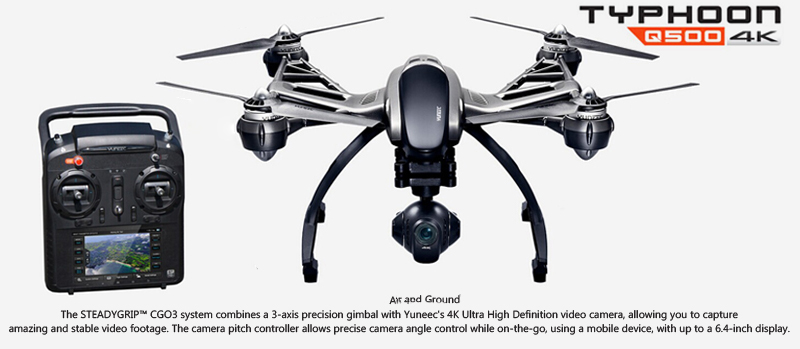

Original Professional YUNEEC Typhoon Q500 10CH 4K Camera 5.8G FPV RC Quadcopter with UHD CGO3 3-Axis Handheld Gimbal

Original Professional YUNEEC Typhoon Q500 10CH 4K Camera 5.8G FPV RC Quadcopter with UHD CGO3 3-Axis Handheld Gimbal

Two Battery / 5.8 FPV / 4K Camera / 3-Axis Handheld Gimbal / we will pay tariffs in advance when the ship to these countries : UK, FR, DE, ES, IT ,Belgium ,Austria, Czech Republic, Denmark, Hungary, Ireland, Luxembourg, the Netherlands, Poland, Slovakia, Slovenia, Sweden and so on .But Need 7-15 days delivery

Price on the app only:

Already have TOMTOP APP

Scan the product's code to buy directly!

Note: Please update TOMTOP App to the latest version.

Without TOMTOP APP?

Download freely and enjoy extra offers!

Ship From:
  • China Warehouse
Please select a warehouse
Dispatch:
Usually will be shipped in business days hours
Shipping:
The request failed! Please try again.
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

United States
Stock in: china

color:

Please select a color
QTY:

For each user order no more 5 item(s)

Special discount has ended

Please note each user for only 1 item(s)

Preorder Add To Cart Out of Stock

Arrival Notice

if the goods arrival in 90 days,we will inform you by email!

Email:

Arrival Notice

Notification Subscription Success!

if the goods arrival in 90 days,we will inform you by email!

Notification Subscription Failed!

Error appeared,Please try again later!

Arrival Notice

Buyer Protection

  • Full Refund If you don't receive your order
  • Full or Partial Refund , If the item is not as described Learn More >

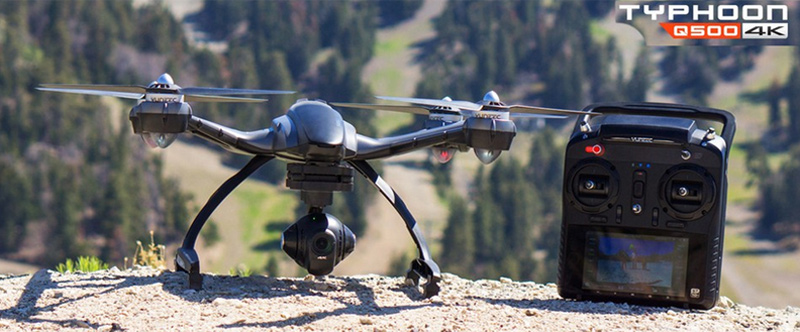

A completion level of ready-to-fly (RTF) means this version of the Q500 Typhoon Quadcopter with CGO2-GB Camera from Yuneec comes factory-assembled. To this end, it incorporates the CGO2-GB/3-axis gimbal system, enabling you to capture stabilized 1080p video at up to 60 fps, and photos at 12-megapixels.The Q500 is bundled with the ST10 Personal Ground Station, at 10-channel, 2.4 GHz transmitter and 5.8 GHz video receiver rolled into one hand-held unit. In addition to traditional RC joystick to pilot the quadcopter, there is a built-in Android mobile device with a 4.5" touchscreen allowing you to view an FPV (first-person view) video image from the camera along with telemetry data superimposed.

















Features:
Personal Ground Station with built-in touchscreen.
Integrated 3-axis precision gimbal camera.
4K/30fps ultra high definition video.
1080p/120fps slow motion video.
User controlled video resolution, white balance and light exposure.
12 megapixel photos with No-Distortion Lens.
Handheld SteadyGrip for capturing video footage.

Specifications:
Typhoon Aircraft:

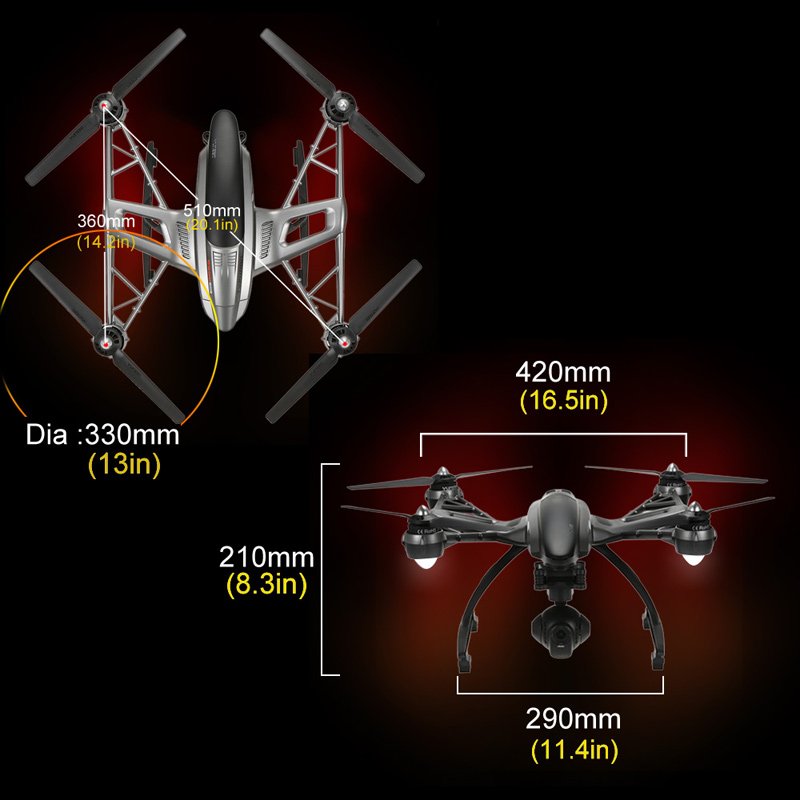

Quadcopter dimension: 565 * 565 * 210mm

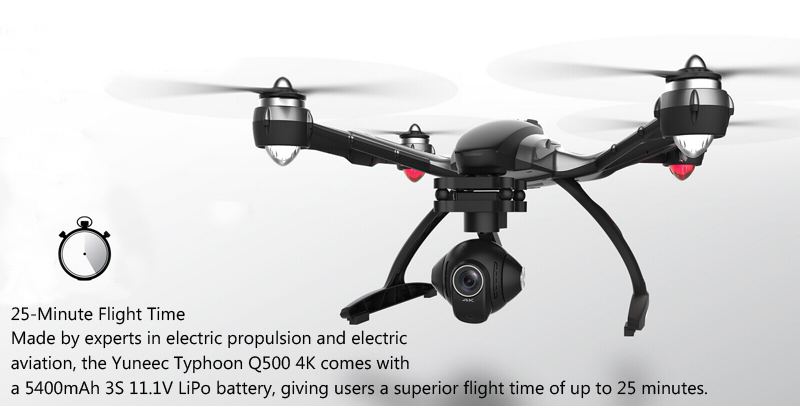

Flight Time: up to 25 minutes
Weight with Battery and Payload: 60.0oz (1700g)
Weight without Battery and Payload: 40.0oz (1130g)
Battery: 5400mAh 3S 11.1V LiPo (included)
Charger: 3S 11.1V LiPo DC Balancing Smart Charger with AC Adapter (included)
Transmitter: 10-channel 2.4GHz with 5.8GHz video downlink (included)

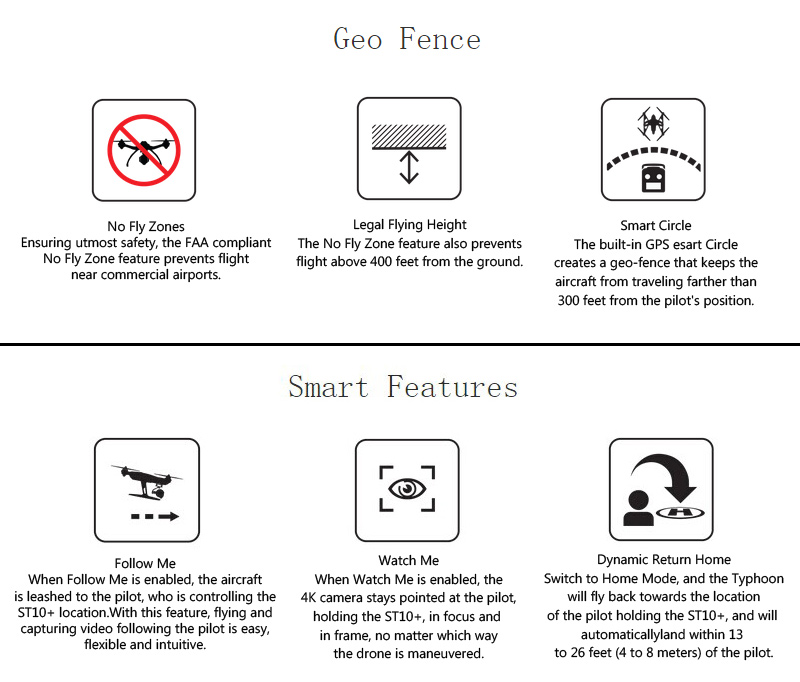

3 Flight Modes: Smart (Follow Me and Watch Me), Angle and Home

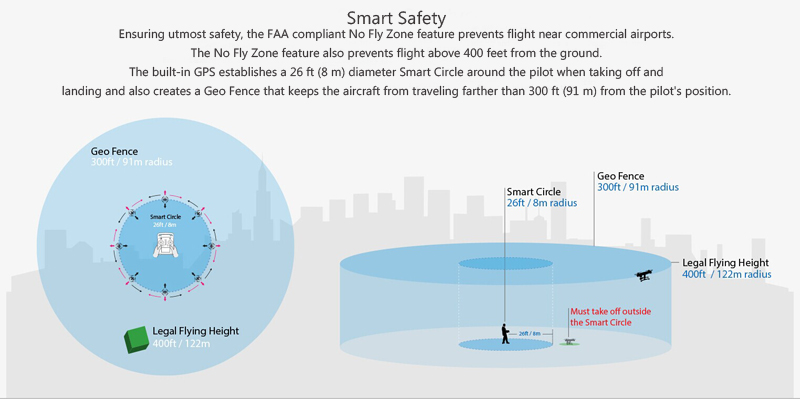

Maximum Flying Height: Default 122m (400ft) above Ground Level (Adjustable via the Typhoon GUI)
Maximum Rotation Rate: 65°/s
Maximum Roll Angle: 35°
Operating Temperature Range: -5°C to 80°C
Radio Control Frequency Band: 2.4GHz
Max. Descent Speed: 2m/s
Max. Flight Speed: 17mph / 27kph (Angle Mode), 22mph / 35kph (Follow Me/Watch Me)

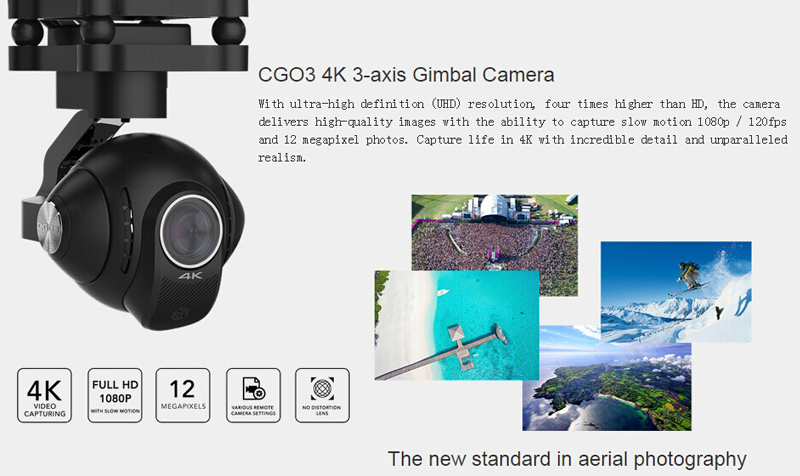

Gimbal Camera:
Type: CGO3
Weight: 6.9oz (195g)
Focusing System: Aerial Optimized Fixed Focus
Field of View: 115°
Video Transmission Range:
FCC Compliance: Up to 600m (1968.5 ft)
CE Compliance: Up to 300m (984.252 ft)
Video Resolution: UHD: 4K at 30FPS, 2.7K at 30FPS, 2.5K at 30FPS — FULL HD: 1080p at 24/25/30/48/50/60/120FPS
Photo Resolution: 12 Megapixels
Storage (memory): micro SD Class 10 ~ 4 to 128GB
Control Angle Accuracy: ±0.02°
White Balance: Automatic or manual settings
Transmission Band: 5.8GHz
Input/Operating Voltage: 12V
Angular Vibration Range: ±0.02°

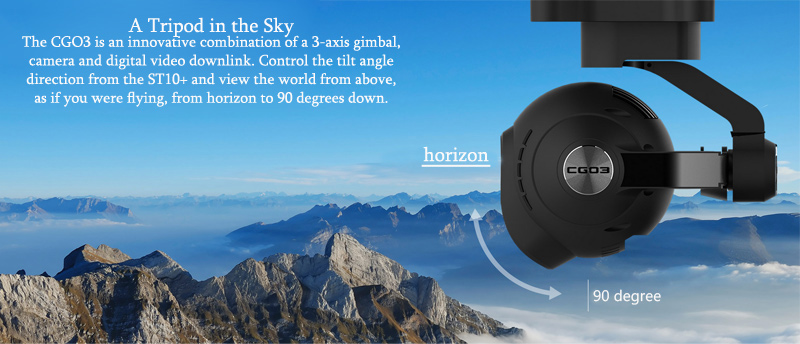

Control Range: Pitch: between -90° and 0°
Microphone: Yes

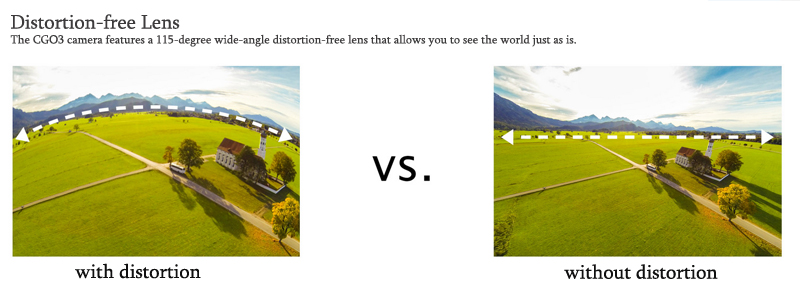

Camera Lens: 14mm f/2.8 – No distortion
Sensor: 1/2.3″ CMOS

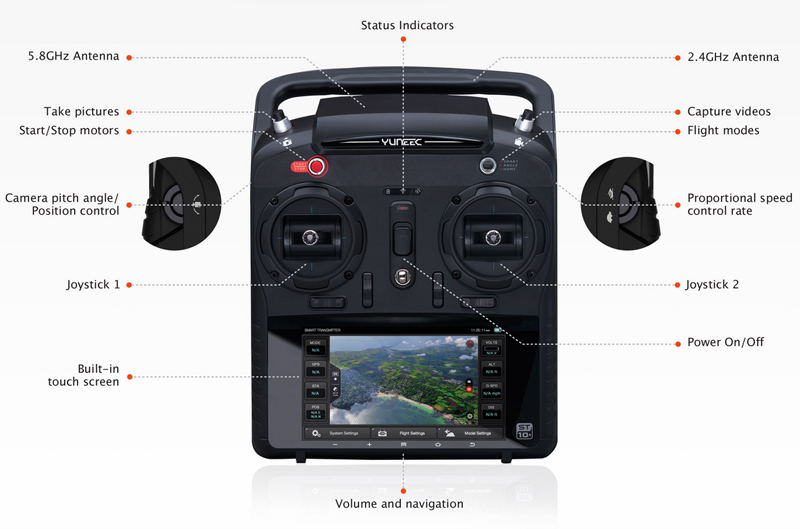

Personal Ground Station:
Type: ST10+
Operating System: Android
Number of Channels: 10
Control Transmission Range (Optimum Conditions):
FCC Compliance: Up to 800m (2624.67 ft)
CE Compliance: Up to 400m (1312.34 ft)
Warning: You Must Follow Local Laws and Maintain Visual Line of Sight of Aircraft at All Times
Robust Radio Control Modulation: Yuneec Protocol
Video Link Frequency Band: 5.8GHz
Video Transmission Range (Optimum Conditions):
FCC Compliance: Up to 600m (1968.5 ft)
CE Compliance: Up to 300m (984.252 ft)
Warning: You Must Follow Local Laws and Maintain Visual Line of Sight of Aircraft at All Times
Flight Systems Telemetry Data On Screen Display: Yes
LED Backlit LCD Screen: Capacitive Multi-touch 5.5″
Tactile (Vibrating) and Audible Feedback: Yes
Built-in LiPo Battery Voltage / Capacity: 3.6V/5200mAh 18.72Wh
Screen Resolution: 854 * 480px

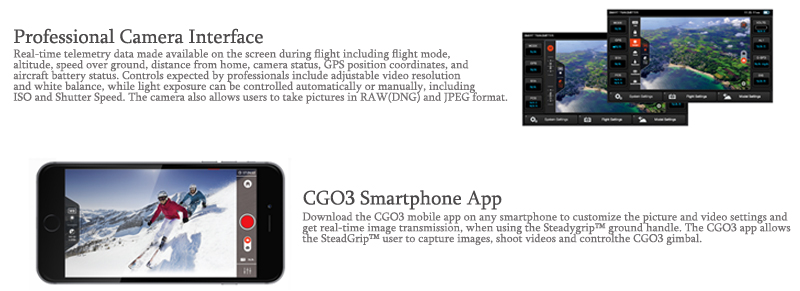

Camera Settings: White balance, light exposure, ISO, shutter speed, video resolution, FPS, record video, take pictures

CGO Steadygrip V3:
Weight (without camera and gimbal): 13.9oz (395g)
Compatible camera: CGO2GB / CGO2+ / CGO3

Package information:
Package size: 50 * 47 * 31.5cm / 19.7 * 18.5 * 12.4in
Package weight: 7348g / 16.2lb
Gift box package

Caution for the battery:
Don't over-charge, or over-discharge batteries.
Don't put it beside the high temperature condition.
Don't throw it into fire.
Don't throw it into water.

Important additional information:
Your Mirco SD card contains an instructional manual, video tutorials
on how to operate your aircraft safely, as well as video highlights that
illustrate the superior quality of the CGO3 camera.
Yuneec.com/support provides an extensive FAQ section on the TYPHOON
Aaircraft and the ST10+ Personal Ground Station as a supplement to the
instruction manual.


Package list:
1 * YUNEEC Typhoon Q500 RTF Airframe w/Installed CGO3
1 * Transmitter (mode 2)
1 * Controller LCD Screen Sun Shade
1 * UAV Pilot Simu-connector
2 * 11.1V 5400mAh 3S Lipo Battery
1 * Battery Balance Charger (US Plug)
1 * Connecting Cable Set
1 * Micro SD Card
1 * Motor Holder

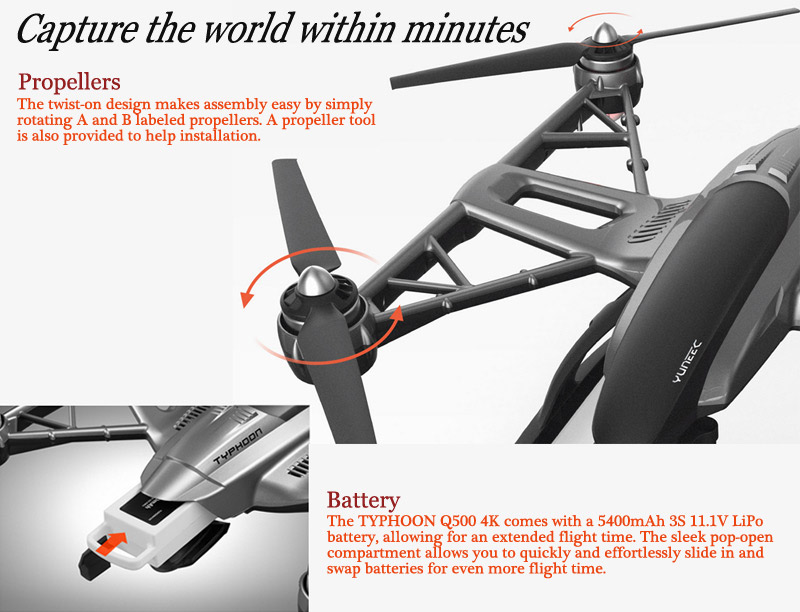

4 * Pair of Propellers
1 * CGO SteadyGrip
1 * English Manual Set
