The new Skyzone SKY02S V+ 5.8G 48CH 3D FPV Goggles are an upgrade of previous Skyzone 3D Goggles. It remains all the features of previous versions, including 3D/2D mode, built-in DVR with playback, head tracking, and built-in front camera etc., also some new features highlight in HDMI-IN, channel auto searching, adjustable IPD and new eyeshade with headband for cozier wearing.
Features:
With 2D/3D mode (SCAM302 3D camera and STX202 two-way transmitters required but not included) and HDMI in.
Channel auto searching.
Dedicated eyeshade with headband for more comfortable wearing.
Built-in DVR with playback.
Built-in 48CH 5.8G diversity receiver with raceband, compatible with most FPV 5.8G transmitters on the market.
Built-in self-calibrating head tracking (gyro, inertial and compass).
Built in dual 854*480(WVGA) monitors, 1,229,760 color sub-pixels.
Built-in external camera for surrounding view (640X480,VGA).
AV in/AV out/earphone socket (with volume control).
Adjustable IPD and diopter for your eyes.
Adjustable brightness and contrast.
Specification:
Binocular display
FOV: 30 degrees (diagonal)
Resolution: 854*480(WVGA) 1,229,760 color sub-pixels
Brightness: 350cd/m2
Interpupillary distance (IPD): 59-69mm adjustable
Wireless Receiver
Sensitivity: -90dBm±1dBm
Antenna port: 2 * SMA, 50ohm
Front Camera
FOV: 60 degrees (diagonal)
Resolution: 640*480(VGA)
Focal length: f=4.0mm
F/NO: 2.8
Head Tracker
Sensor: Magnetic, inertial and gyro
Output: PPM 8 channel, Optional 5-6CH, 5-7CH, 5-8CH, 6-7CH, 6-8CH, 7-8CH
Record
Micro SD: Support to 32GB
Compression: MJPEG, 30fps, AVI
Picture: JPEG
Record rate: 6Mbps
AV Signal
Video standard: NTSC/PAL
Video output level: 1.0Vp-p Typ./75ohm
Audio output level: 1.0Vp-p Typ./10Kohm

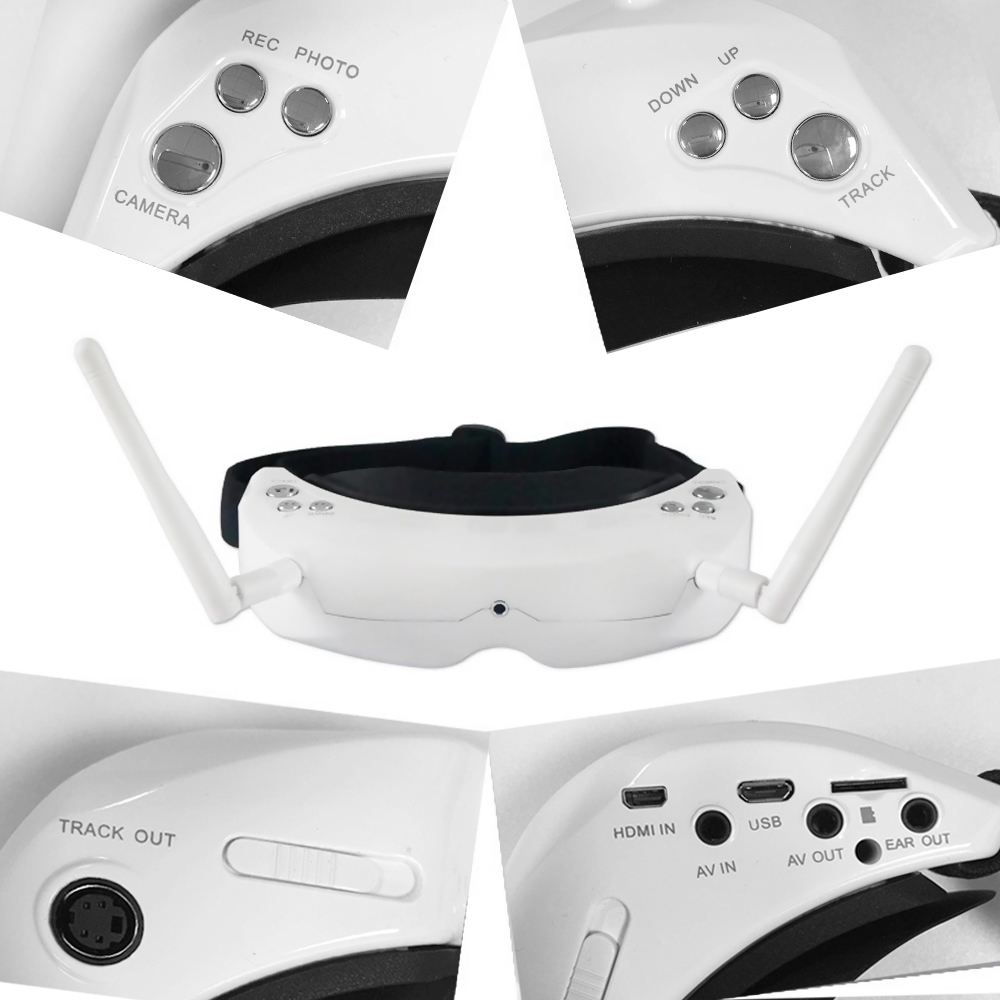

AV Port
Div.AV OUT (3.5mm4P): Diversity video, audio output
EAR OUT (3.5mm3P): Stereo 16Ω/150mW
AV IN (3.5mm4P): Video/Audio input
HD Port IN(Micro HD Port/D‐Type): HD Port 1.4 specification
1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50,
1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all)
Power Supply
DC IN: DC 7~26V/1A
Power consumption: 12V input: 5.4W
Operating Temperature: 0℃~+60℃
Goggles Dimensions: 168 * 92.5 * 41mm
Goggles Weight: 185g
Preset Frequency:
CH1: 5733M, 5771M
CH2: 5752M, 5790M
CH3: 5809M, 5847M
CH4: 5828M, 5866M
Custom Frequency:
A: 5865M, 5845M, 5825M, 5805M, 5785M, 5765M, 5745M, 5725M
B: 5733M, 5752M, 5771M, 5790M, 5809M, 5828M, 5847M, 5866M
E: 5705M, 5685M, 5665M, 5645M, 5885M, 5905M, 5925M, 5945M
F: 5740M, 5760M, 5780M, 5800M, 5820M, 5840M, 5860M, 5880M
R: 5658M, 5695M, 5732M, 5769M, 5806M, 5843M, 5880M, 5917M
L: 5362M, 5399M, 5436M, 5473M, 5510M, 5547M, 5584M, 5621M
Note:
The 3D mode requires SCAM302 3D camera and STX202 two-way transmitters which are not included in the package.
Package information:
Package size: 24 * 18 * 9cm / 9.4 * 7.1 * 3.5in
Package weight: 885g / 2.0lb
General Box Package
Package Included:
1 * Goggles
1 * Carry Case
2 * Antenna (SMA)
1 * AV Cable
1 * JR Data Cable
1 * WFLY Data Cable
1 * Futaba Data Cable
1 * XT60 Plug Power Cable
1 * Accessories
1 * English User Manual
