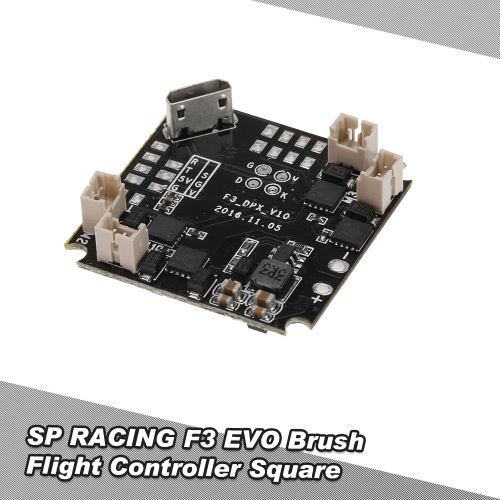

This brand new SP RACING F3 EVO Brush Flight Controller is developed on the basis of F3 EVO SP RACING, with fast processing and high performance. This 30mm * 30mm square design is special made for blade inductrix, NH-010, H36, etc.



Features:
Super mini and lightweight, only weighs 3g.
F3 EVO Brush is a 32 bit brush flight controller developed out of the F3 EVO SP RACING, based on a SP RACING F3 EVO firmware.
The flight controller support 1S (4.2V) and 2S (8.4V) power supply, 2S power can provide more violent flying experience. (In order to use 2S power, you need to cutoff "1S" and connect "2S" on the controller board.)
Independent design of the circuit structure, comes with the pressure reduction technology, whether it is 1S or 2S power input, UART1/2 output 5V, UART3 output 3.3V.
Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight.
With a large current MOS transistors, operating current of up to 10A or more. Each machine is equipped with freewheeling diodes.
Support for PPM, SBUS, DSM receiver input signal.
With battery voltage detection and buzzer interface.
In support of the world almost all coreless motor, including 1020 coreless motor.
Special square design for blade inductrix, NH-010, H36, etc.

Specifications:
Input power: 1S / 2S (4.2V / 8.4V)
Signal support: PPM, SBUS, DSM
Motor support: All RC coreless motor
Suit for: blade inductrix, NH-010, H36, etc.
Item dimension: 30 * 30 * 7mm
Item weight: 3g

There might be deviation due to manual measurement.

Notice:
Before applying power, pay attention to the battery voltage selection.
The default shipping is 1S (4.2V); When using 2S, first need to disconnect the short contacts 1S, and then put the two pads on the 2S.
Prohibit shorted together the three pads at the same time.

Receiver configuration:
1. DSM receiver soldered directly to the DSM interface 3.3V, GND, RX3, CF software configuration UART3.
2. PPM and SBUS receiver welded to the UART2 GND, + 5V, RX2, SBUS signal in the CF software configuration UART2.


Package information:
Package size: 7 * 5.2 * 1cm / 2.8 * 2 * 0.4in
Package weight: 5g / 0.17oz
Polybag package

Package list:
1 *
F3 Brush Flight Controller Square
