Original FrSky X8R 2.4G 8CH 16CH SBUS Smart Port Receiver with PCB Antenna for FrSky Taranis X9D Plus

Original FrSky X8R 2.4G 8CH 16CH SBUS Smart Port Receiver with PCB Antenna for FrSky Taranis X9D Plus

Price on the app only:

Already have TOMTOP APP

Scan the product's code to buy directly!

Note: Please update TOMTOP App to the latest version.

Without TOMTOP APP?

Download freely and enjoy extra offers!

Ship From:
  • China Warehouse
Please select a warehouse
Dispatch:
Usually will be shipped in business days hours
Shipping:
The request failed! Please try again.
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

United States
Stock in: china
QTY:

Special discount has ended

Please note each user for only 1 item(s)

Preorder Add To Cart Out of Stock

Arrival Notice

if the goods arrival in 90 days,we will inform you by email!

Email:

Arrival Notice

Notification Subscription Success!

if the goods arrival in 90 days,we will inform you by email!

Notification Subscription Failed!

Error appeared,Please try again later!

Arrival Notice
Add to Favorites

Buyer Protection

  • Full Refund If you don't receive your order
  • Full or Partial Refund , If the item is not as described Learn More >

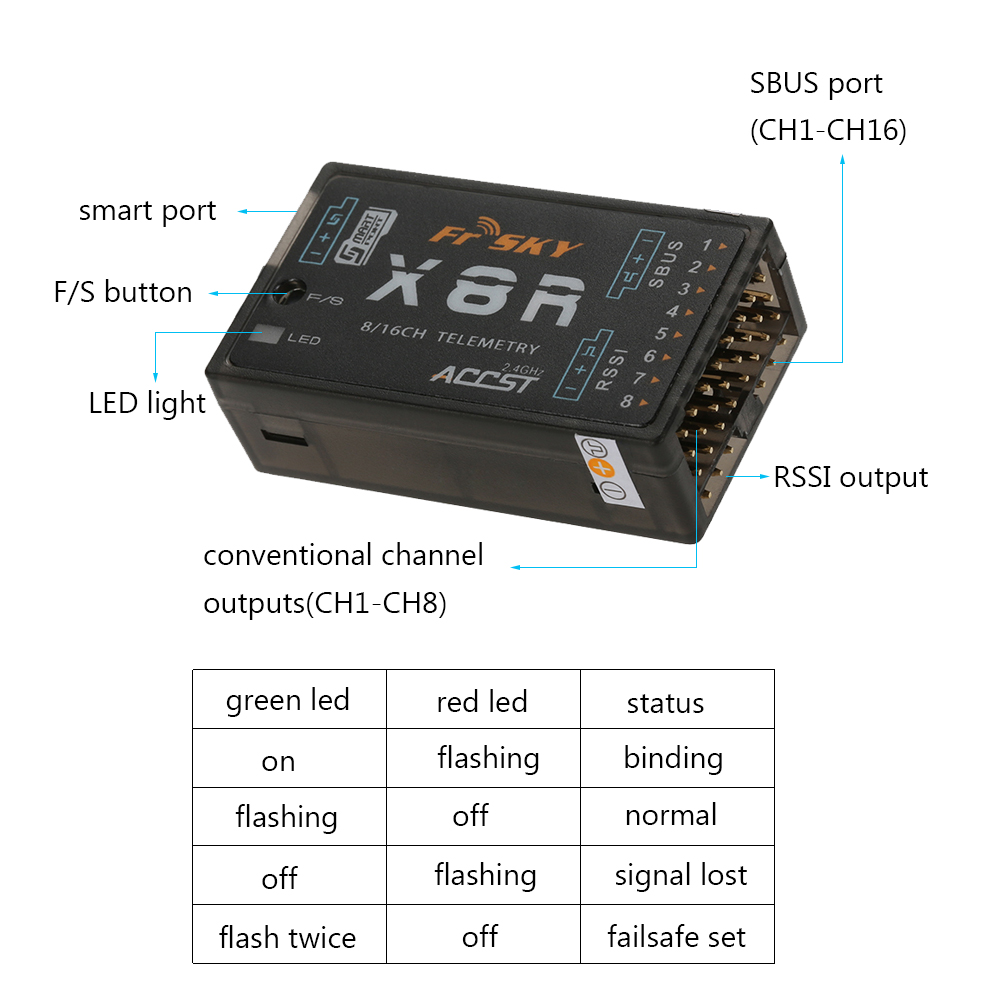

This receiver featuring 16 channels (8 normal conventional outputs and all 16 channels on the dedicated Sbus output). Plus the exciting new smart port. It uses PCB antennas and report up to a 20% range increase over the standard antennas.

Features:
Firmware upgradeable
With RSSI PWM output (0-3.3V)
Highly secure and robust link for long distances
Great range, built in high-gain diversity antenna
Smart Port enabled, realizing two-way full duplex transmission
1-8ch from conventional channel outputs, 1-16ch from SBUS port, or combine two X8R to become a 16 channels receiver

Specifications:
Brand: Frsky
Item NO: X8R
Channel: 8ch, 16ch
Operating voltage range: 4-10V
Operating current: 100mA at 5V
Operating range: >1.5km (full range)
Antenna: PCB high gain antenna
Compatibility:
FrSky DFT/DJT/DHT/DHT-U in D_mode
FrSky Taranis X9D puls/XJT in D8 mode
FrSky Taranis X9D puls/XJT in D16 mode
Size: 45 * 26 * 15mm
Weight: 17g

NOTE:
A common question we get is how do you get all 16 channels out of the X8R? Well, FrSky has given you options. You can use the Sbus line to access all 16 channels. Using something like the FrSky Sbus Decoder, you can convert the digital Sbus signal to normal servo outputs. You can connect Sbus servos directly to the Sbus line, FrSky will have several servo options very soon. Or you can combine 2 X8Rs and output channels 1-8 on the first reciever, and output 9-16 on the second reciever.


Package Information:
Package size: 16.5 * 9 * 2cm / 6.5 * 3.5 * 0.8in
Package weight: 42g / 1.5oz
Plastic package

Package List:
1 * FrSky X8R Receiver
2 * Jumper
1 * English Manual

Customer Questions & Answers

Sort by:
0 votes
Q

will this work with , or is it compatible with the taranis Q X7s?

A
  • Yes

    By Eric Warren on May 8, 2018

See more answers (2)
0 votes
Q

Any1 know if this will work on the omnibus f4 flight controller that comes with the eachine wizard x220s? also buying taranis dx9 plus. will all work?

A
  • Will work just fine, can run sbus. I believe that fc can run sbus and if not the x8r can still do it. You don't need an X8R for that though; unless your just wanting strongest possible signal. Xm+ and x4r are smaller and without knowing more about your application I can't say for sure but may be better for you. I love… see more Will work just fine, can run sbus. I believe that fc can run sbus and if not the x8r can still do it. You don't need an X8R for that though; unless your just wanting strongest possible signal. Xm+ and x4r are smaller and without knowing more about your application I can't say for sure but may be better for you. I love the x8r for my hex and quad with gimbal and foldable legs. It's a great receiver and I highly recommend it but it's a bit overkill for a stock x220s. Great radio choice, you can't go wrong there. Should all work fine. They sell a BNF (bind and fly) wizard with frsky receiver already installed too (I think) I'm rambling so ill stop, hope that helps. see less

    By Ace Godfrey on April 19, 2018

See more answers (1)
0 votes
Q

Does the receiver bring the cable to connect to a flight board (PixHawk)

A
  • Yes it dose

    By Paul A. on March 10, 2018

See more answers (1)
0 votes
Q

Can the pwm _and_ s-bus be used at the same time?

A
  • You have to put a jumper from 1&2 and jump 3&4 when binding, then channels 9 and above are PWM

    By Richard on April 17, 2018

See more answers (1)
0 votes
Q

Does this receiver have auto stabilization?

A
  • NO....

    By Roger E. Jones on January 21, 2018

0 votes
Q

I'm a noobie to the Taranis radio and this rx. how do I bind the rx to the tx do I plug my lipo into one of the ports to bind it?

A
  • I went to YouTube, typed in frisky and I found how to bind, I still have to use youtube cause I forget, however, a beautiful radio. Any questions follow on youtube

    By Roger E. Jones on January 15, 2018

See more answers (2)
0 votes
Q

are the antennas on this as good as the ones with the PCB ends? also is it possible to replace the antennas with the PCB?

A
  • Yes, as far as we've tested here in the shop, signal strength is actually a little bit better. You can test RSSI signal to confirm. Thanks

    By Quadrelli on January 13, 2018

See more answers (1)
0 votes
Q

two questions #1 why is there two versions? #2 are the ends of the antennas thin and bendable?

A
  • I don't know the dif of the two but the antennas are not bendable

    By Devin Onofrietti on January 13, 2018

See more answers (2)
0 votes
Q

Will this fit a 210 chassis?

A
  • Buy the x4r-sb has same features and is a lot better I have purchased one of these and it failed and have yet to get a reply from them about it.

    By Mirei Kobayashi on November 30, 2017

See more answers (1)
0 votes
Q

will this work with the Taranis QX7 transmiter?

A
  • yes sure it does!

    By Rio Yamamoto on November 23, 2017

Discussions

Post a new topic

Please note that TOMTOP Forums are a community for all communicating and getting help each other. There will be some enthusiastic friends participate in your discussions. Of course TOMTOP customer service (with tomtop customer service icon) response is guaranteed ,which is the same way you contact us at http://www.tomtop.com/contacts

open this forum in full page
Customer Reviews

Average Rating:

4

based on 2 Customer Reviews

  • 5 stars
  • 4 stars
    100%
  • 3 stars
  • 2 stars
  • 1 stars

Share your thoughts with other customers and get Tomtop Points, the first 5 reviews get DOUBLE Tomtop Points!

Write a Customer Review
  • By Enos

    January 20, 2018

    It's a good receiver, the telemetry port is handy if you have a battery voltage monitor to send telemetry information to your radio. The one thing I don't like is the wire connection at the antenna ends is easily breakable. After moving the receiver between a couple different planes the wires are starting to break away from the antenna panels, so I have to treat them with kid gloves. Just be careful not to put much stress on that location, or perhaps add a drop of hot glue there to take some of the strain off.

    Is this helpful? (0) (0)

  • By Calzer

    January 19, 2018

    I am very impressed with the quality and functions. Binding is a snap. I have my voltage sensor and GPS module plugged in. And it transmits a great signal. You can do lots of things on Quad copters. If you fly FPV This will work a mile and a half away, I was told from a pilot today.. He flys a 90 mph racing quad! Now that's some Impressive preformance to me. I would give this a rating of 10 but they only allow 5. Happy Flying ! 🛩

    Is this helpful? (0) (0)
