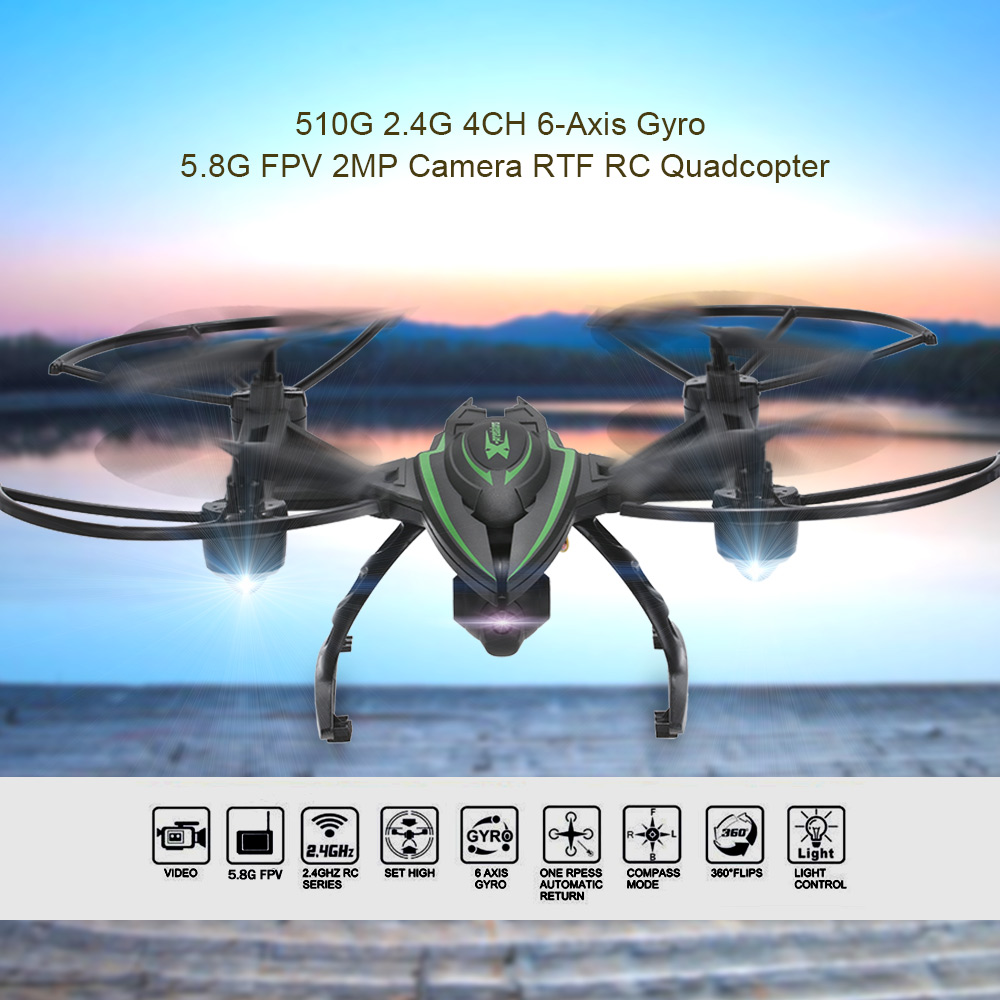

The JXD 510G is simply amazing. it is a pleasure to fly. It features one-key return, 3D-flip, CF Mode, high hold mode and a high precision 6-axis gyro stabilization system providing a wonderful flight performance, which is perfect for both beginners and advanced pilots.
With LCD FPV monitor.
3D-flip to experience cool flying play.
Colorful LED light suit for flying in the dark at night.
Headless model completely solves pilot loss-of-orientation problems.
Cool design, 6-axis gyro ensures stable flight and more precise control.
2MP camera capture and record every beautiful and unforgettable moment.

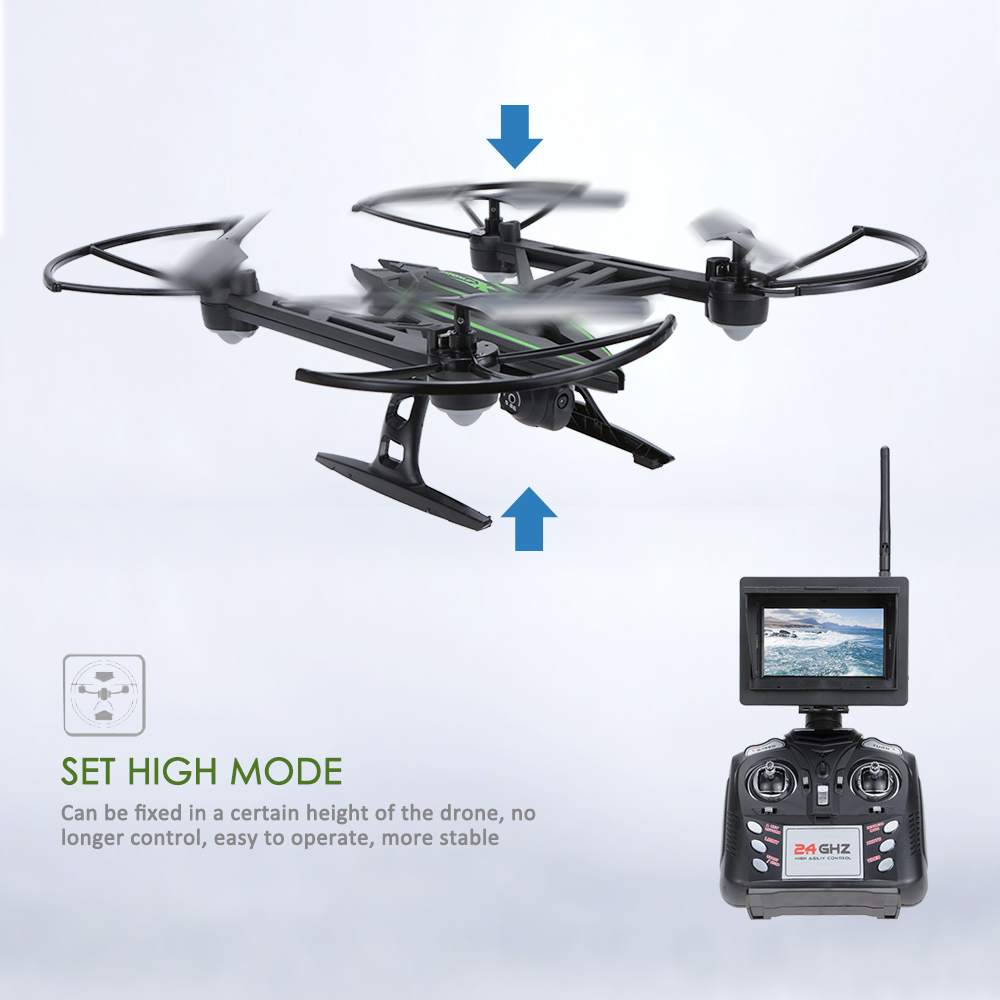

High hold mode: With high density air pressure sensor which can precisely hold the height.

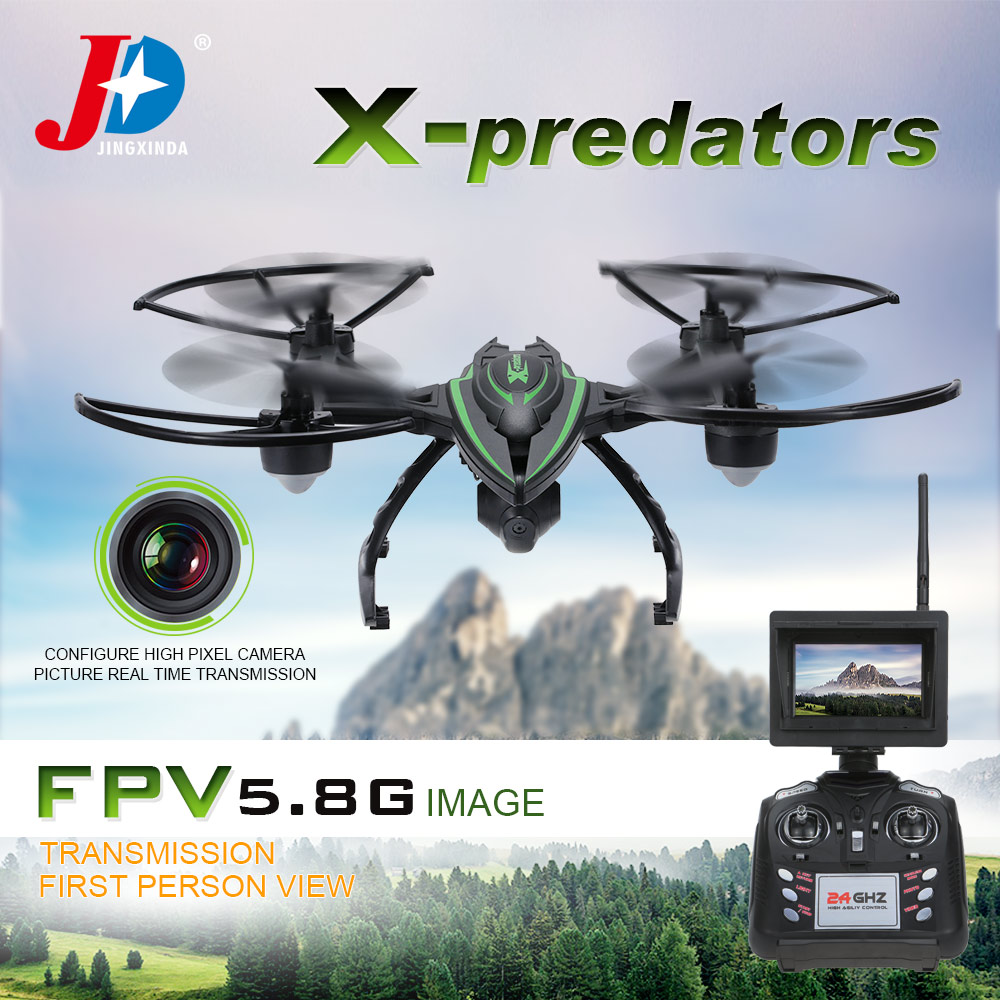

5.8G real-time transmission share the videos and photos to the LCD screen at anytime anywhere.
Gyroscope: Six axis
Remote control frequency: 2.4GHz
FPV frequency: 5.8G
Remote controller: Mode 2 (left hand throttle)
Control distance: About 80m
Working time: About 6min
Charging time: About 70min
Transmitter battery: 4 * 1.5V AA battery (not included)
Quadcopter battery: Rechargeable 3.7V 600mAh 30C LiPo battery
Function: Forward, backward, turn left and right, night lighting, speed up, one-key return, CF mode, 3D-flip, high hold mode
Battery size: 43 * 23 *7mm
Quadcopter size: 310 * 310 * 107mm
Quadcopter weight: 127g (battery excluded)
Package size: 38 * 21.5 * 13cm / 15 * 8.5 * 5in
Package weight: 923g / 2.03lb
Brand gift box package

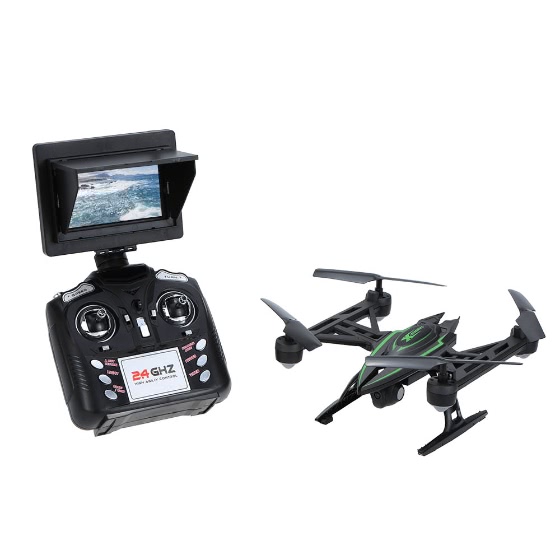

1 * JXD 510G RC Quadcopter with 2MP Camera
1 * Transmitter (mode 2)
1 * 3.7V 600mAh LiPo battery
1 * LCD FPV Screen
1 * USB Charger Cable of LCD Screen
1 * USB Charger Cable of Battery
2 * Pair of Spare Propellers
2 * Pair of Protective Ring
1 * 5.8G Antenna
1 * 4GB SD card
1 * USB Card Reader
1 * Tool Set
1 * English Manual
FAQ of the aircraft:
1.The aircraft fail to connect with transmitter.
Before binding, make sure battery is full. Then turn on the drone and the transmitter, the time between these two operation should be finished in 2 seconds.
2.One or more motors don't work.
Drone should stay on a flat surface during the binding, or motor is damaged.
3.Battery problems (can't be charged, swelling, etc)
Battery damaged, suggested to change a new one.
Check gift box package inside and outside carefully. Contact custom service.
5.The aircraft is out of balance (can't fly, deviation, spinning on the ground).
Check the propeller is installed in the right way.
6.During the charging, battery and charging cable melt.
This USB charger only used for DC current(computer USB port), never connect to AC electric circuit. Besides, pay attention to the charging time, never over charging.
