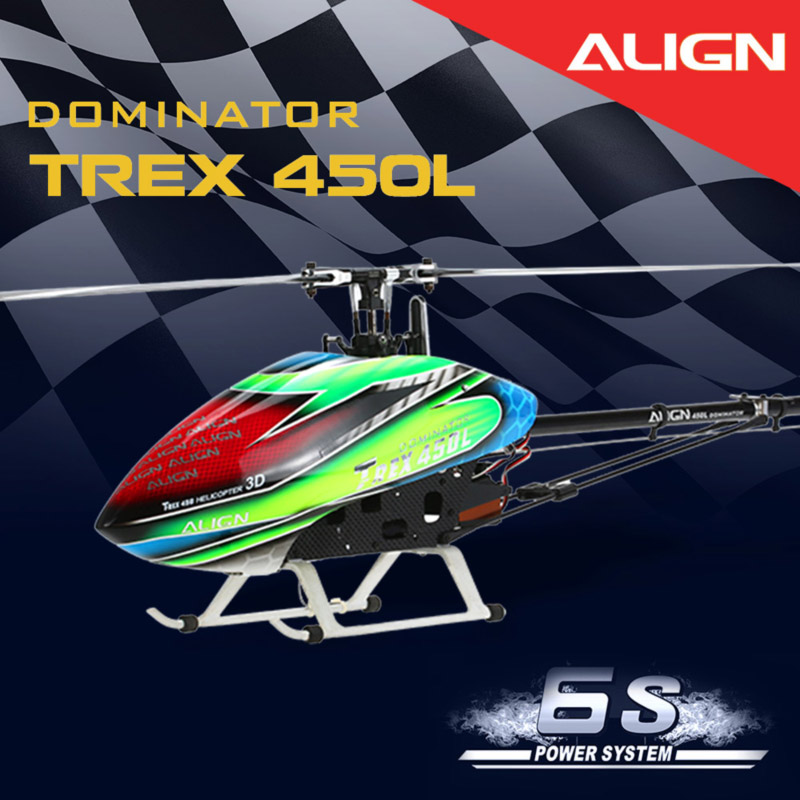

Original ALIGN T-REX 450L Dominator Combo DFC 3D 6S Power System RC Helicopter

Original ALIGN T-REX 450L Dominator Combo DFC 3D 6S Power System RC Helicopter

Price on the app only:

Already have TOMTOP APP

Scan the product's code to buy directly!

Note: Please update TOMTOP App to the latest version.

Don't have TOMTOP APP

Download freely and enjoy extra offers!

Ship From:
  • China Warehouse
Dispatch:
Usually will be shipped in business days hours
Shipping:
The request failed! Please try again.
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

United States
Stock in: china
QTY:

Special discount has ended

Please note each user for only 1 item(s)

Preorder Add To Cart Out of Stock

Arrival Notice

if the goods arrival in 90 days,we will inform you by email!

Email:

Arrival Notice

Notification Subscription Success!

if the goods arrival in 90 days,we will inform you by email!

Notification Subscription Failed!

Error appeared,Please try again later!

Arrival Notice
Add to Favorites

Share:

The internationally popular T-Rex 450 has long been a trend setting helicopter, every enthusiasts probably has owned at least one. It is the ideal model for beginners as well as experts practicing advanced maneuvers. Now the T-Rex 450 evolution continues, as Align drops another shocker into the market; with even more innovative designed incorporated, the brand new T-Rex 450L Dominator.

T-Rex 450L reverses the common impression people have on T-Rex 450, with material integration technology utilized on side frame design, and has features previously found only on larger models, such as battery mounting rails, top mounted motor, 700E DFC type main bearing block with integrated servo mounts, forming striking resemblances to larger contest grade models. The newly added frame reinforcement plates not only improves helicopter’s overall rigidity and anti-torsion characteristics, the beautiful red anodizing also creates highly pleasing aesthetics, further exhibits the T-Rex 450L’s attractiveness and exclusiveness. In addition, the T-Rex 450L cleverly expands on the core concepts of T-Rex 450 Pro designs, to carry on the heritage of its mature design of excellence.

Equipped with the DFC flybarless head assembly, paired with newly designed 3D specific 360 3G main rotor blades that are both stable and agile, improving anti-torsion characteristics and power output during flight, resulting in even better flight stability. Based on 6s voltage, the 460MX (1800KV) motor is tailor made for the T-Rex 450L DOMINATOR. When paired with RCE-BL45X brushless speed controller, the motor has superior efficiency, high power output, extreme torque, and low current, low temperature. As a totem to the 850MX Dominator motor, The 460MX shares the same extraordinary pedigree. Brand new DS430M servos controls the swashplate, with feature such as improved torque and speed, along with double bearing support, resulting in minimal deadband and better longevity.

With cutting edge design concepts and top grade electronics, T-Rex 450L Dominator surpasses traditional flight performances with higher stability, extreme power, superior control feel, yet maintains the convenience of smaller size. The T-Rex 450L Dominator is a model not to be missed!
















Features:
Small and compact PCB design for lightweight and simple installation.
Highly compatible to work with 98% of all kinds of brushless motors.
Newly designed 3D specific 360 main rotor blades are stable and agile, resulting in improved flight performance.

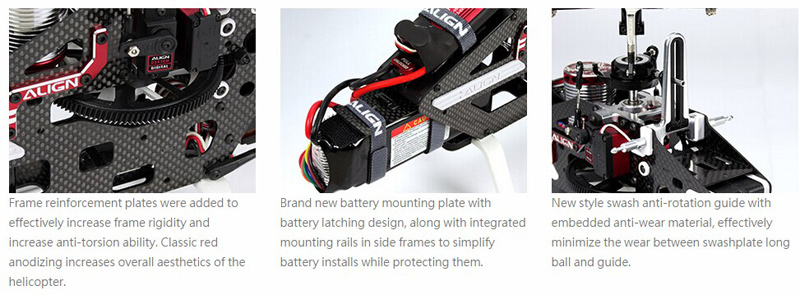

New style swash anti-rotation guide with embedded anti-wear material, effectively minimize the wear between swashplate long ball and guide.

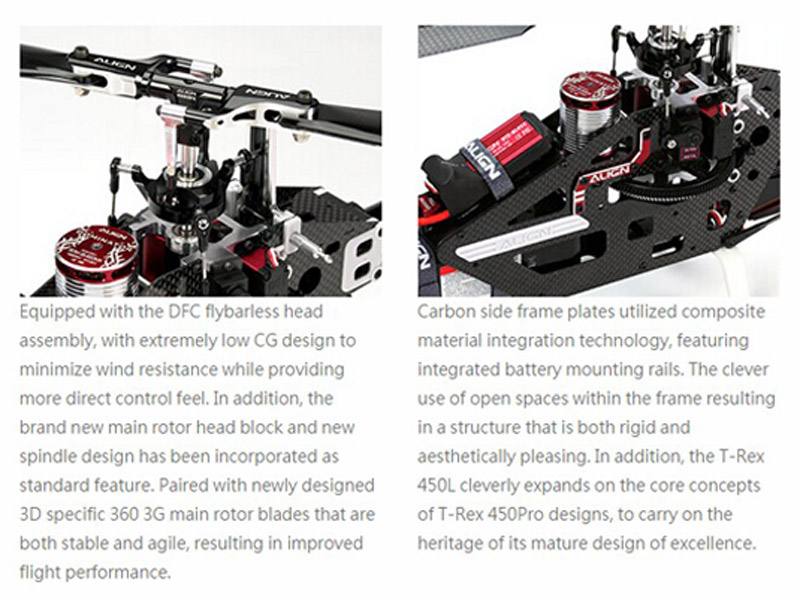

Equipped with the DFC flybarless head assembly, with extremely low CG design to minimize wind resistance while providing more direct control feel.

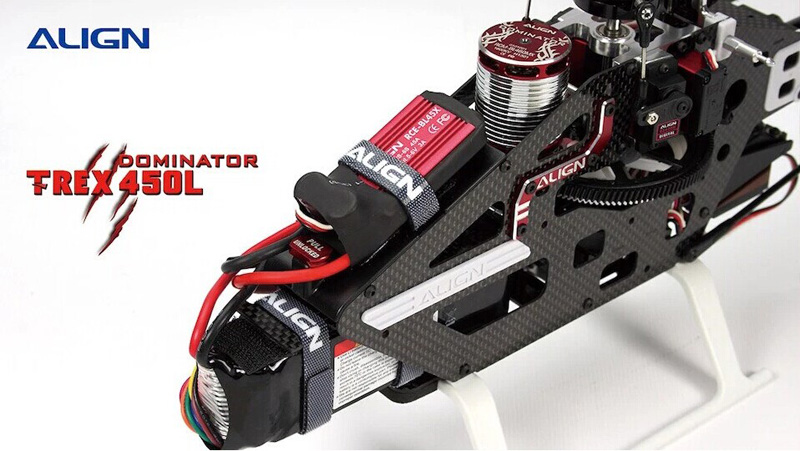

Brand new battery mounting plates with battery latching design, along with integrated mounting rails in side frames to simplify battery installs while protecting them.
Carbon side frame plates utilized composite material integration technology, adding battery mouting rails which results in a structure that is both rigid and aesthetically pleasing.

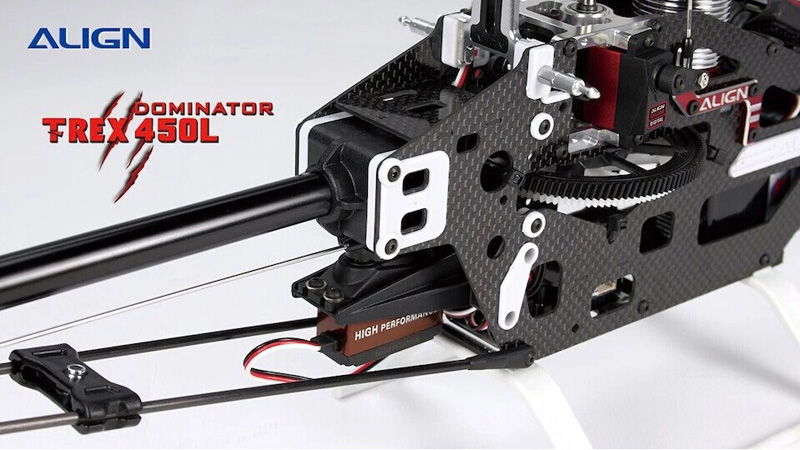

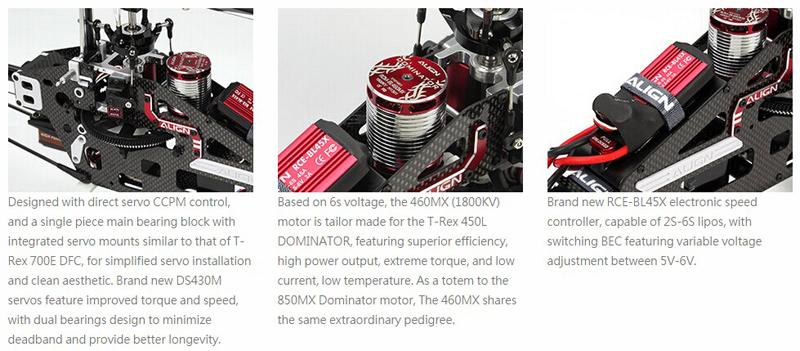

Designed with direct servo CCPM control, and a single piece main bearing block with integrated servo mounts similar to that of T-REX 700E DFC, for simplifized servo installation and clean aesthetic.
Based on 6S voltage, the 460MX (1800KV) motor is tailor made for the T-REX 450L DOMINATOR, featuring superior efficiency, high power output, extreme torque, and low current, low temperature.

Specifications:
Brand name: ALIGN
Item name: T-REX 450L

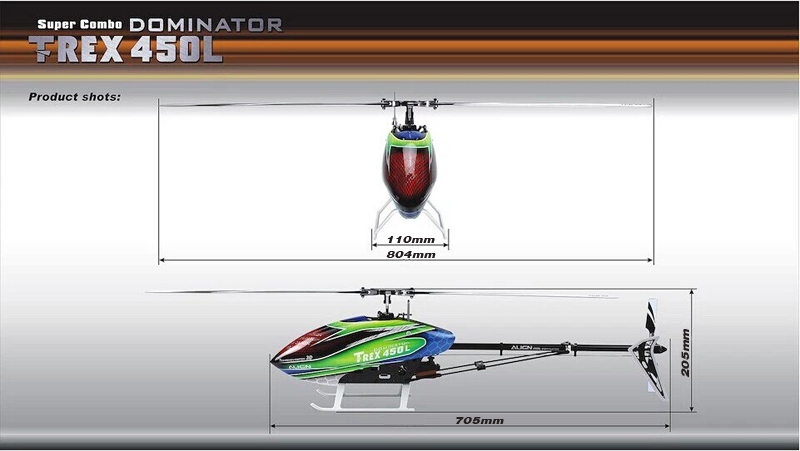

Length: 705mm
Height: 205mm
Main blade length: 360mm
Main Rotor Diameter: 804mm
Tail rotor Diameter: 171mm
Motor drive gear: 11T
Main drive gear: 121T
Autorotation tail drive gear: 106T
Tail drive gear: 25T
Drive gear ratio: 1:11:4.24
Motor: 1800KV brushless motor
Servo: 3pcs DS430M and 1pcs DS525M
Brushless ESC: DC input 2-6S 45A; BEC output 5-6V 3A

Package information:
Package size: 46.3 * 16 * 10.7cm / 18.3 * 6.3 * 4.2in
Package weight: 1553g / 3.4lb
Gift box package

Notice:
The transmitter is not included, you need to buy one by yourself.

This RC helicopter is not assembled, you need to assemble it by yourself.
This RC helicopter is equipped with brushless motors, continuous using with different batteries is not suggested.
This RC model is not a toy and is not suitable for children under 14 years old, keep it away from children.
Carefully read the instruction before any use, if you are a beginner, it's advisable to be assisted by an experienced adult.


Package list:
1 * T-REX 450L Main Blade Set
1 * T-REX 450L Frame Set
1 * T-REX 450L Electric Device Set
1 * English Manual
