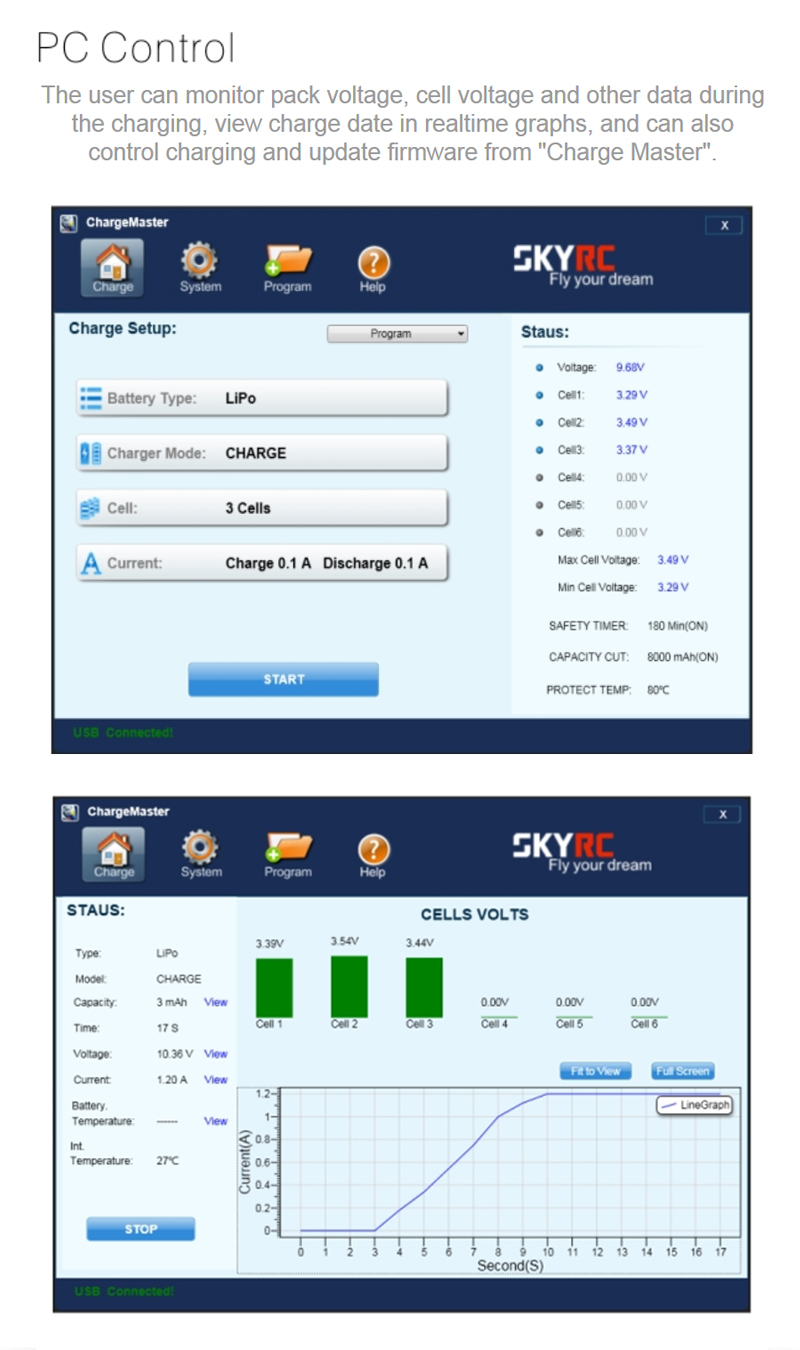

SKYRC B6AC+ V2 is the upgraded version for well-known IMAX B6AC+ V1. Compared with B6AC+ V1, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to PC for PC control and firmware upgrade. What's more, users could also use it as lithium battery meter and battery internal resistance meter. There are automatic charging current limit, capacity limit, temperature threshold and processing time limit which makes the charger safer than V1.

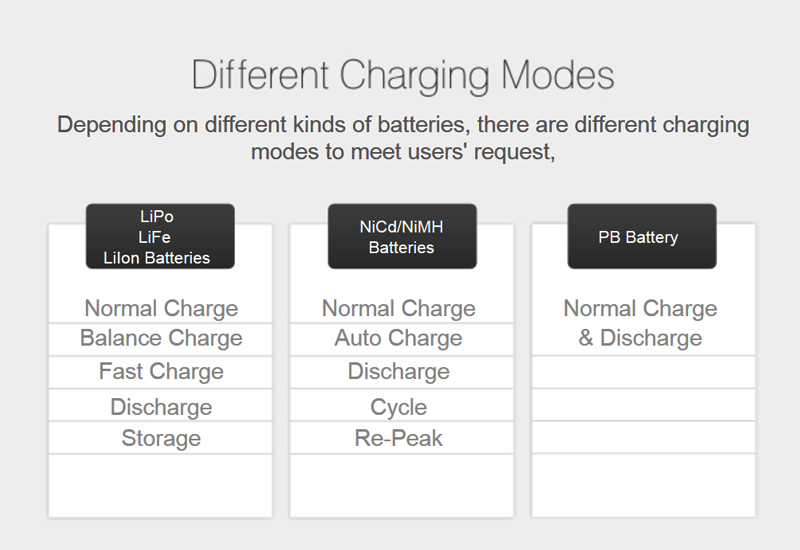

SKYRC B6AC+ V2 is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium-Polymer (LiPo), Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.
Note: Temperature probe and Wifi module are not included.

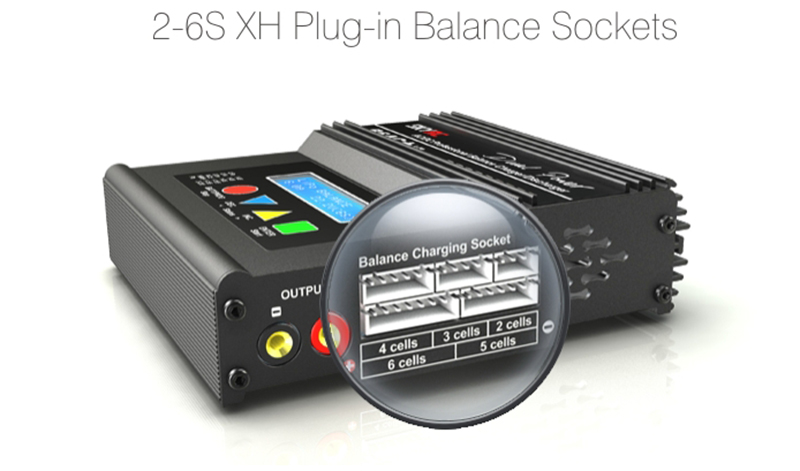

SKYRC B6AC+ V2 employs an individual-cell-voltage balancer.
The charger can store up to 10 different charge/discharge profiles for your convenience.
The user can check battery's total voltage, the highest voltage, the lowest voltage and each cell's voltage by this charger.
The user can check battery's total resistance, the highest resistance, the lowest resistance and each cell's resistance.
Automatic Charging Current Limit: Capacity Limit, Temperature Threshold, Processing Time Limit.
The charger allows user to set the charge/ discharge end voltage.
Item brand: SKYRC
Item model: B6AC+ V2
Charge battery type: LiPo/LiFe/LiIon/NiMH/NiCd/Pb
Input voltage: AC 100-240V / DC 11-18V
Charge power: Max. 50W
Discharge power: Max.5W
Charge current range: 0.1-6.0A
Discharge current range: 0.1-2.0A
Balance Current: 200mA/cell
LiPo/LiFe/LiIon cells: 1-6 cells
NiMH/NiCd cells: 1-15S
Pb(Lead Acid) battery voltage: 2-20V
Memory: 10 different charge/discharge profiles
Charge method: CC/CV for lithium types and lead (Pb) batteries; Delta-peak sensitivity for NiMH/NiCd
Weight: 639g / 1.4lb
Size: 144 * 135 * 36mm / 5.7 * 5.3 * 1.4in
Package size: 21.5 * 20 * 6cm / 8.5 * 7.9 * 2.4in
Package weight: 1016g /2.2lb
General gift box
1 * SKYRC B6AC+ V2 50W balance charger
1 * AC power cable
1 * T plug with banana connector charging cable
1 * DC cable with banana connector charging cable
1 * T plug with alligator clip connector charging cable
1 * T plug with futaba connector charging cable
1 * T plug with JST connector charging cable
1 * T plug with XT60 connector charging cable
2 * Battery clamp
1 * English user manual
