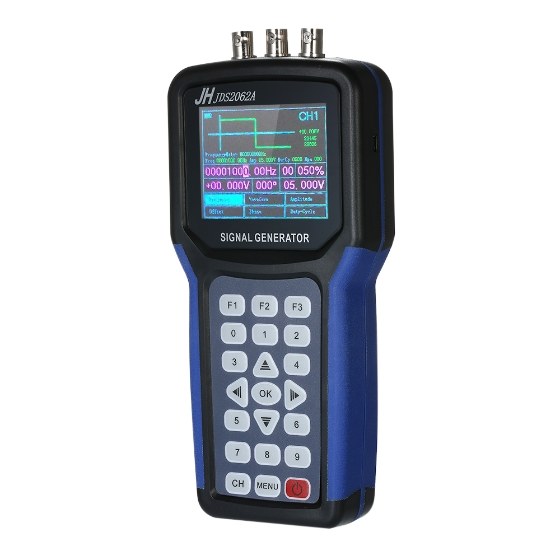

JINHANIC Handheld 2 Channel Portable Frequency Sweep Meter

JINHANIC Handheld 2 Channel Portable Frequency Sweep Meter

Digital Signal Generator 30MHz Output 2CH 3.2" TFT LCD Display

Price on the app only:

Already have TOMTOP APP

Scan the product's code to buy directly!

Note: Please update TOMTOP App to the latest version.

Without TOMTOP APP?

Download freely and enjoy extra offers!

Ship From:
  • China Warehouse
Please select a warehouse
Dispatch:
Usually will be shipped in business days hours
Shipping:
The request failed! Please try again.
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

United States
Stock in: china

plug:

  • us plug
  • eu plug
Please select a plug
QTY:

For each user order no more 5 item(s)

Special discount has ended

Please note each user for only 1 item(s)

Preorder Add To Cart Out of Stock

Arrival Notice

if the goods arrival in 90 days,we will inform you by email!

Email:

Arrival Notice

Notification Subscription Success!

if the goods arrival in 90 days,we will inform you by email!

Notification Subscription Failed!

Error appeared,Please try again later!

Arrival Notice

Buyer Protection

  • Full Refund If you don't receive your order
  • Full or Partial Refund , If the item is not as described Learn More >
This handheld digital 2CH signal generator with a 100M frequency meter function is really practical for use. Its maximum output is 30MHz.

Features:
Professional digital signal generator with 2CH(double channel).
Maximum 30MHz output and 100M frequency meter.
Waveform type(Comes with): square wave, sine wave, triangle wave, trapezoidal wave, exponential wave, half-sine wave, positive and negative triangular wave, ringing wave, etc.
Colorful 3.2" LCD display with 320*240 pixels resolution, easy and clear for reading.
Powered by 1*18650 3.7V lithium battery(not included), with battery charger for convenient charging.
Can also use USB cable to connect to other mobile devices for power supply.

Specifications:
Battery Charger Plug Type: US / EU (Optional)
Display: Full Color TFT LCD Display(320*240 pixels)
Channel: 2
Sine Wave: 0.01Hz - 30MHz (minimum resolution 0.01Hz)
Square Wave: 0.01Hz - 25Mhz (minimum resolution 0.01Hz)
Triangle Wave: 0.01Hz - 25Mhz (minimum resolution 0.01Hz)
Other Waveform: 0.01Hz - 6MHz (minimum resolution 0.01Hz)
Custom Waveform: 1Hz - 6MHz (minimum resolution 1Hz)
Square Wave Rise Time: ≤10ns
Custom Waveform: 98 (the waveform drawn by the user himself)
Number of Waveform Points: 2048 (maximum)
Vertical Resolution: 14 bits
Square Wave Overshoot: ≤5%
Square Wave Duty Cycle: 0%-100%
Output Signal Amplitude Range: ≤5MHz (2mV - 20V)
                                                      ≥5MHz≤10MHz (2mV - 10V)
                                                      ≥10MHz≤30MHz (2mV - 5V)
Minimum Amplitude: 2mV
Minimum Amplitude Increment: 1mV
Output Signal Offset Range: ≤500mV (±1V (total maximum))
                        >500mV (±10V (total maximum))
Minimum Offset Increment: 1mV
Adjustable Phase: 0°- 360°
Minimum Phase Increment: 1°
Frequency Sweep Channel: CH1 CH2 (can be simultaneously)
Frequency Meter: Input 1Hz - 100MHz (input voltage range 200mV-20V)
Power Supply: 1 * 18650 3.7V 3600mAh Battery(NOT Included)
Product Size: 217 * 100 * 35mm / 8.5 * 3.9 * 1.4in
Product Weight: 340g / 12.0oz
Package Size: 28.5 * 23 * 8.5cm / 11.2 * 9.1 * 3.3in
Package Weight: Approx. 719g / 25.4oz

Package List:
1 * Signal Generator
1 * Signal Source Output Line
1 * BNC Connecting Line
1 * Battery Charger
1 * USB Cable
1 * Screen Protector
1 * CD
