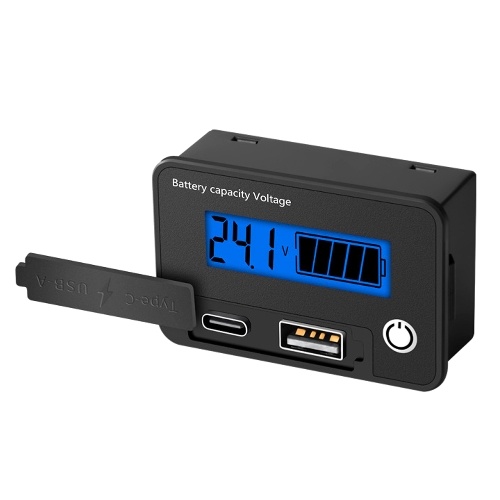

Two-wire Digital Voltage Meter 8-30VDC Battery Capacity Voltage Tester Type-C USB-A Dual Output Voltmeter Digital Display with Low Voltage Alarm Setting and Power Failure Memory Functions

The tester supports a variety of battery types, including Lithium-ion (L03 series to L07 series), Leadacid (12 VDC, 24 VDC), and Lithium-iron-phosphate (F03 series to F08 series ) batteries. Offers a self-adjustable voltage detection ranging from 8VDC to 30VDC, along with an intelligent calibration function. The power failure memory function for retaining settings even after power loss. Its broad compatibility, precise calibration, user-friendly controls, and integrated quick recharging features make it a versatile and reliable tool for managing various battery systems.

Features:

【Multi-Battery Compatibility & Memory Function】: The tester supports a variety of battery types, including Lithium-ion (L03 series to L07 series), Leadacid (12 VDC, 24 VDC), and Lithium-iron-phosphate (F03 series to F08 series ) batteries. The power failure memory function for retaining settings even after power loss.

【Customizable Voltage & Calibration】: Offers a self-adjustable voltage detection ranging from 8VDC to 30VDC, along with an intelligent calibration feature that allows for precise voltage readings using a high-precise 30VDC power source, ensuring accuracy and reliability over time.

【Intuitive User Interface & Settings】: Features an easy control panel with multifunction setting functions for configuring different modes and parameters, including high and low voltage values, low voltage alarm thresholds and display backlight duration, ensuring ease of use and accessibility for various applications.

【Compact Design & Charging Output】: Compact size design, complemented by USB and Type-C charging outputs supporting 2.0 and 3.0 quick recharging protocols, capable of delivering maximum 18W of power for convenient device charging.

【Versatile Applications & Quick Refresh Rate】: Suitable for a broad spectrum of scenarios such as electrical cabinets, exhibition displays, solar inverters, production line testing, electronic repairs, and DIY projects, with a quick refresh rate of 500ms per cycle for dynamic detecting.

Specifications:

Name: Battery Capacity Voltage Tester

Material: alumium alloy

Color: green, blue, white, multi-color (optional)

Voltage detection ranges: 8-30VDC

Detection accuracy: ±1%

Operating current: <15mA (without charging function)

Display: LCD screen

USB output: quick recharging 2.0/3.0, maximum output 18W (5V-3.4A, 9V-2A, 12 V-1.5A)

Typec output: quick recharging 2.0/3.0, maximum output 18W (5V-3.1A, 7V-2.4A, 9V-2A, 12 V-1.5A)

Refresh speed: 500ms/time

Installation size: 58.5 * 36.5mm / 2.30 * 1.44in

Item size: 61 * 40 * 22mm / 2.40 * 1.57 * 0.87in

Package size: 63 * 42 * 24mm / 2.48 * 1.65 * 0.94in

Package weight: 34g / 1.20ounce

Packing List:

1 * Battery Capacity Voltage Tester
