Digital Direct Current Voltage Regulator Powersupply Module Full Viewing Angle VA Color LCD Display Support Firmware Upgrading Maximum Power Point Tracking Solar Charging and Serial Communication Protocol

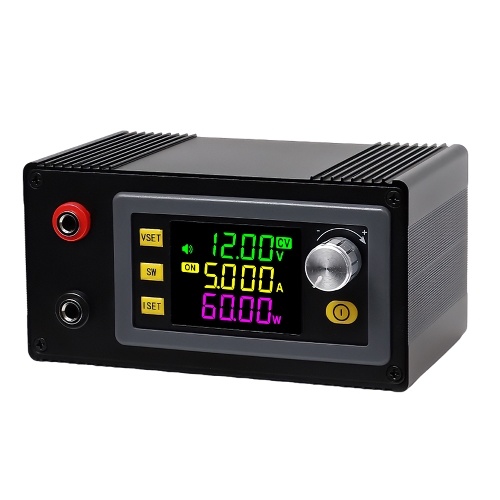

This programmable direct current powersupply features a full-angle VA color LCD screen, and the 38*29mm display size ensures all information is visible clearly. Compatible with serial communication protocol, this product supports firmware upgrades, with multiple protective systems and multiple parameter settings, making it a standout choice for professionals and enthusiasts alike. It supports web-based PC software and mobilephone app (Android/iOS) control, facilitating ease of use and accessibility. It supports multi-serial communication. Cloud connectivity enables real-time data viewing and controlling from anywhere, with alerts and updates sent over the network.

Features:

【Scientific & Reasonable Layout】:  The housing with invisible and reasonable air cooling structure can effectively take away the heat inside the housing and make the powersupply run efficiently and reliably. Integrates an external temperature probe interface, a buzzer for audible feedback, a removable terminal block for convenient wiring, and with rich interfaces for more convenient to operate.

【LCD Display & Comprehensive Functionality】: Featuring a full-angle VA color LCD screen, the 38*29mm display size ensures all information is visible clearly. One-piece molded frosted panel, aluminum alloy knob with comfortable hand feeling. With support for constant voltage, constant current, and constant power, alongside 6.0-36.00V input and 0-36.00V output voltage ranges to meet different application requirements. It can store ten groups of data, enhancing usability and efficiency. Compatible with serial communication protocol, this product supports firmware upgrades.

【 Multiple Protective Mechanisms & Safety Features】: Equipped with multiple protective systems, including reverse polarity, backflow proof, under-voltage, over-voltage, over-current, over-power, over-temperature, and over-time protections, which ensures safer operation under various conditions. And its built-in Maximum Power Point Tracking function facilitates efficient solar charging, making it suitable for out-of-door scenarios.

【High Flexibility in Parameter Settings】: With adjustable parameters for voltage, current, under-voltage protective value, over-voltage protective value, over-current protective value, over-power protective value, over-capacity protective value, over-energy protective value, over-time protective value, and over-temperature protective value, this offers unparalleled customization options. The intuitive interface, featuring 4 buttons and an encoder, simplifies operation and parameter adjustment, while the power button enables output activation and reset functions.

【APP & PC Software Control & Networked Management】: Cloud connectivity enables real-time data viewing and controlling from anywhere, with alerts and updates sent over the network. It supports web-based PC software and mobilephone app (Android/iOS) control, facilitating ease of use and accessibility. It supports multi-serial communication. One serial port can connect to 247 devices, and through the multi-serial port can realize thousands of cluster controls. Supports batch control of all devices under the account (voltage current switch, etc.). You can add a management account to manage voltage and current, adding safety and efficiency to system management.

Specifications:

Name: Powersupply

Material: plastics

Model: XYSK60, XYSK120 (optional)

Display: 38*29mm LCD display

Input voltage: 6.0-36V

Output voltage: 0-36V

Output current: 0-6.000A

Voltage accuracy: ±0.5%+1 word

Output power: 60W, 120W (according to your selection)

Current accuracy: ±0.5%+3 words

Voltage resolution: 0.01V

Current resolution: 0.001A

Storage data group: 10 groups

Number of keys: 5

Buzzer: Yes

Conversion efficiency: 88% or so

Softstart: Yes

Maximum Power Point Tracking function: Support Maximum Power Point Tracking solar charging

Protective mechanism:

Input reverse connection protecting: Yes

Output backflow protecting: Yes

Input undervoltage protective value: (5.5-36V adjustable, default 5.5V)

Output over-voltage protective value: (0-38V adjustable, default 38V)

Output over-current protective value: (0-5.2A adjustable, default 5.2A)

Over-temperature protective value: (0-110℃ adjustable, default 95℃)

Timeout protective value: (0-100H adjustable, default off)

Over capacity protective value: (0-9999AH adjustable, default off)

Over energy protective value: (0-4200KWH adjustable, default off)

Item size: 111 * 57 * 65mm / 4.37 * 2.24 * 2.56in

Item weight:

SK60: 284g / 10.02ounce

SK120: 296g / 10.44ounce

Package size: 150 * 80 * 80mm / 5.91 * 3.15 * 3.15in

Package weight:

SK60: 300g / 10.58ounce

SK120: 306g / 10.79ounce

Packing List:

1 * Powersupply
