With its compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital satellite TV service, antenna signal and cable signal to residential homes or multi-dwelling units.

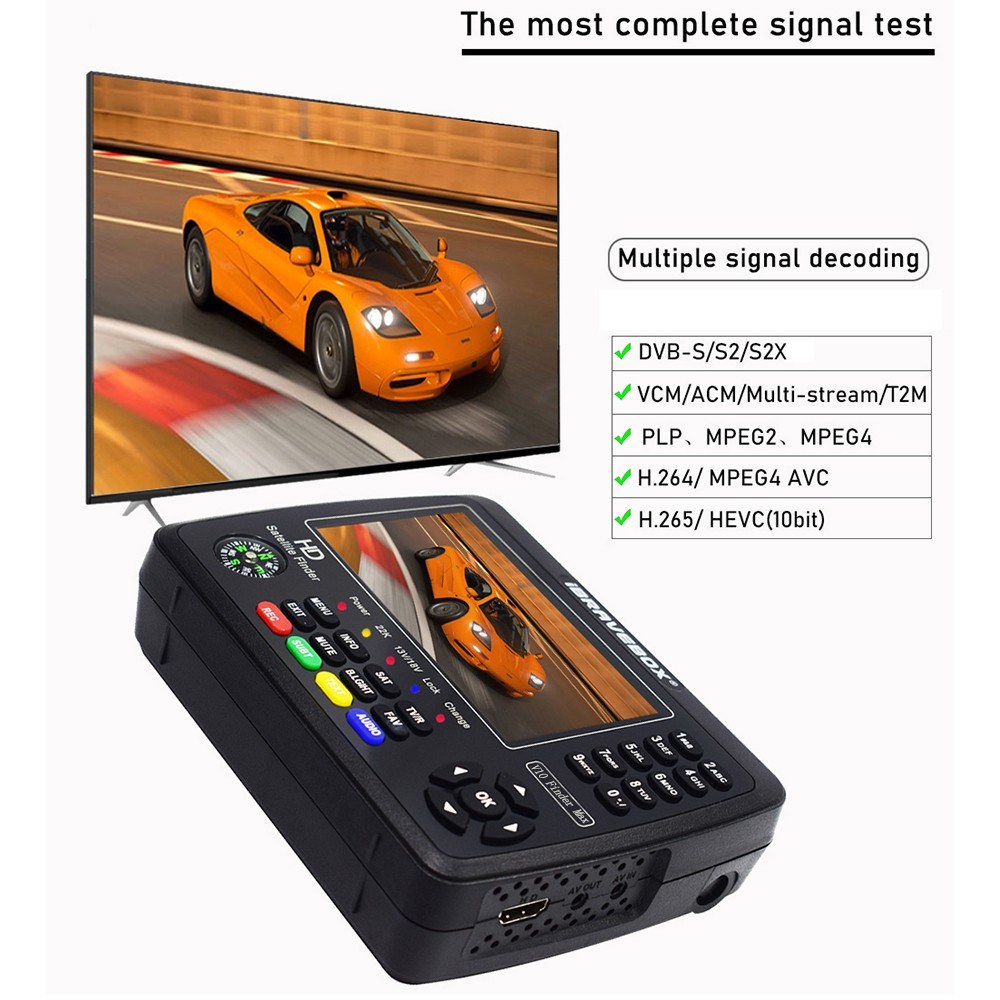

This satellite finder has a 4.3 inch high definition LCD screen and is fully compatible with DVB-S/S2/S2X. Live FTA digital picture and sound, hardware decoding H.264/H.265 (10 Bit).
This satellite finder supports auto, blind, manual, NIT scan. Supports DISEQC 1.0/1.1/1.2, 0/22 kHz tone. Support AV output and AV input at the same time. Supports H-DMI output. Built-in speaker LNB short protection.
This satellite finder complies with the standard portable combination meter. The satellite signal finder is small in size, lightweight and very comfortable to carry. Sound for locking signal. Automatically calculate the angle of AZ, EL.
This satellite finder has a built-in 7.4V/4000mAh lithium ion battery, normal work up to 4-6 hours. Support real-time power display, with low power reminder. The satellite finder is updated by software via the USB and WiFi network.
This satellite finder is used to detect signal strength and quality. the satellite finder provides all the necessary functions for the installation and verification of digital satellite television service, antenna signal and cable signal for residential homes or multi-dwelling units.
Plug: US / EU / UK (Optional)
Panel display: 4.3 inch LCD
Output Interface: LNB IN*2, DV OUT, AV OUT, AV IN, USB, Power supply
H-DMI: H-DMI(up to 1080P) output
System Capabilities: Full HD DVB-S/S2/S2X & H.265 Complian, Fully DVB compliant
Video Decode: AC-3, MPEG-2 MPEG-4 MP@HL; H.264 BP MP&HP@L4.1; AVS profile@L6.1/4.0/2.0
PAL/NTSC: Automatic PAL/NTSC conversion
Channels Number: 6000 channels TV and Radio programmable
Favorites: 8 different favorite groups selection
OSD Language: English/German/French/Portuguese/Spanish/Italian/Russian/Turkish/Polish/Arabic/Farsi/Espanol/Deutsch
OSD Color: 16-bit OSD with anti-flickering
Channel Search: Channel search in automatic, manual and network search
Channel Edit: Various channel editing function(favorite, move, lock, skip, delete, rename, find, sort)
Easy Menu: Plug and Play installation, with an easy to use Menu System
Soft Upgrade: Software upgrade through USB
Save Channel: Automatic save for last channel
Li-oN Battery: Battery 4000mA
Power Supply: DC12V/1500mA (Input 100V～240V, 50/60Hz)
1. System resource:
Flash Memory: 64Mb Serial Flash
DDR3 Memory: 1Gb DDR3
2. LNB/Tuner input:
Connector: F type, male
Frequency Range: 950MHZ-2150MHZ
Input Impedance: 75Ω
Signal Lever: -65dBm~-25dBm
Active Ant Power: 13/18V DC @ 400mA MAX, Overload Protection
LNB Switch Control: 22KHz
DiSEqC: Ver 1.0/1.1/1.2
Front End: QPSK(S); QPSK, 8PSK, 16APSK, 32APSK(S2)
Modulation Range: 2Mbps~45Mbps
SCPC and MCPC Capable: Yes
Spectral Inversion: Auto conversion
Item Size: 154 * 121.5 * 41.5mm / 6.06 * 4.78 * 1.63in
Item Weight: 550g / 19.4oz
Package Size: 23 * 15.8 * 6.2cm / 9.06 * 6.22 * 2.44in
Package Weight: 820g / 28.92oz
1 * Digital Satellite Meter
1 * AV Cable
1 * Car Charger Cable
1 * Power Adapter
1 * User Manual (English)
