The 20000-count true RMS digital multimeter has high accuracy and high resolution. Aside from normal features of multimeters, this meter also includes conductance measurement (range: 0.1nS~200nS; converted resistance: 5MΩ~10GΩ), which expands the range of resistance measurement and enables high resistance measurement. Designed according to CAT II 1000V/CAT III 600V safety rating, the meter comes with overvoltage/overcurrent alarm and full featured false detection protection for high voltages, which is the first choice for the commercial and industrial area.
Features:
Multiple Functions: including the measurement functions of DC/AC voltage, DC/AC current, resistance, capacitance, conductance, frequency, temperature, continuity & diode test, and LPF measurement.
Wide Measurement Range: 0.1nS~200nS conductance measurement, 200MHz frequency measurement for sinusoidal/non-sinusoidal waves (such as crystal frequency), 1000V max. measurable AC/DC voltage, 20A max. measurable current, very large capacitance (200mF) measurement, etc.
Safety Operation: full-featured false detection protection for up to 600V overvoltage surge, and overvoltage/overcurrent alarm.
User-friendly Design: double injection molding case with high hardness that can bear from dropping from 1 meters hight.
Clearly Measured Data Checking: 2.8-inch large LCD display with auto backlight for flexibly responding to various dark conditions. And the data hold function for writing the measurement value down with ease.
LPF Measurement: low pass filter (LPF) to measure combined sine wave signals produced by inverters and variable frequency drives.

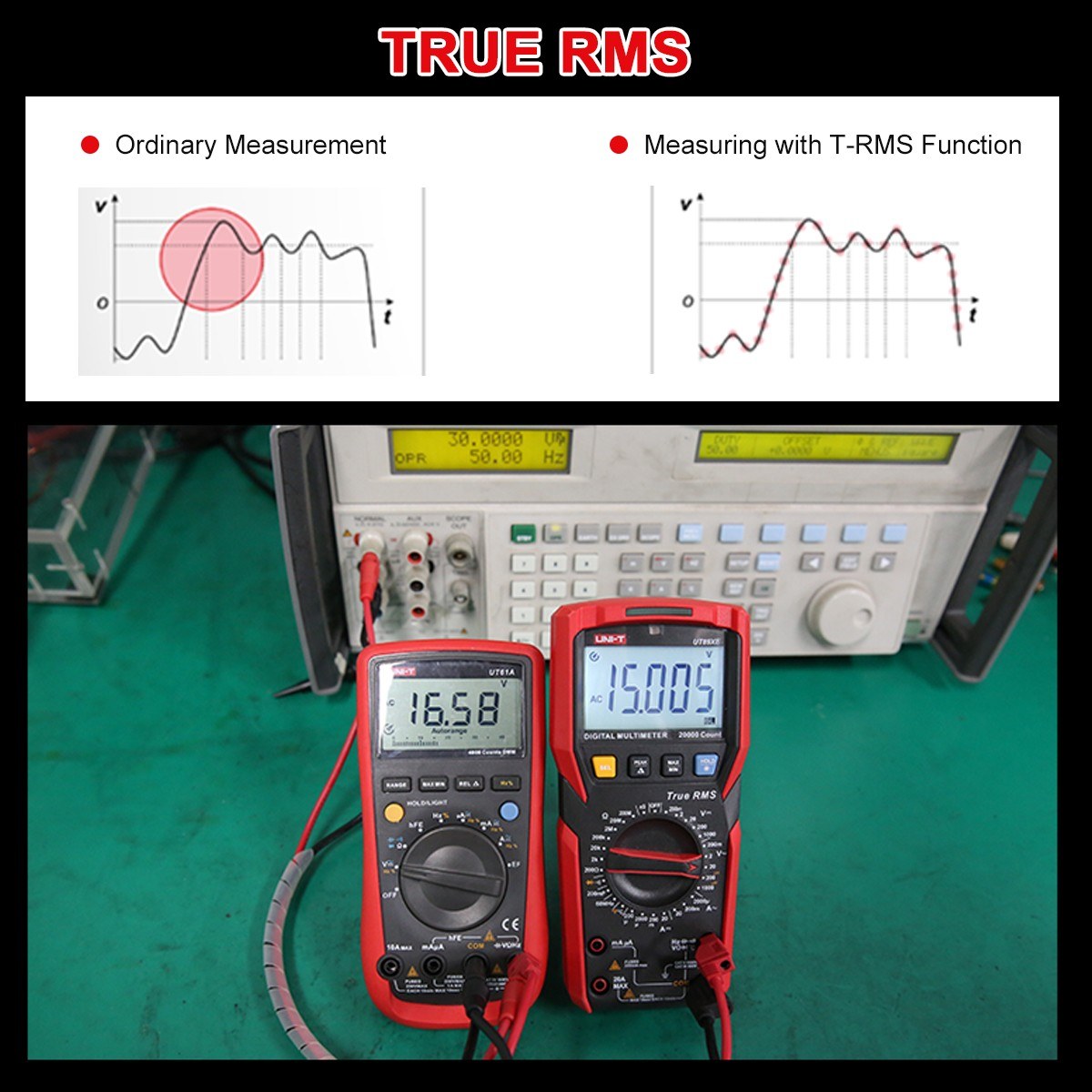

Other Features: 20000-count display, true RMS measurement, and fast ADC (3 times/s), peak maximum/minimum capture, auto power off, audible & visual alarm, etc.
Specifications:
AC Voltage Range: 200mV±(1.0%+25), 2V/20V/200V±(0.8%+25), 1000V±(1.2%+25)
AC Voltage Resolution: 0.01mV/0.0001V/0.001V/0.01V/1V
AC Voltage(LPF): 200V/1000V±(2%+30)
AC Voltage(LPF): 0.01V/0.1V
DC Voltage Range: 200mV/2V/20V/200V±(0.05%+5), 1000V±(0.1%+5)
DC Voltage Resolution: 0.01mV/0.0001V/0.001V/0.01V/1V
AC Current Range: 2000uA/200mA±(1.5%+15), 20A±(2.5%+35)
AC Current Resolution: 0.1uA/0.01mA/0.001A
DC Current Range: 200uA/2000uA±(0.5%+4), 200mA±(0.8%+6), 20A±(2%+15)
DC Current Resolution: 0.01uA/0.1uA/0.01mA/0.001A
Resistance Range: 200Ω±(0.4%+10), 2kΩ/20kΩ/200kΩ/2MΩ±(0.4%+5), 20MΩ±(1.2%+25), 200MΩ±(5%+10)
Resistance Resolution: 0.01Ω/0.0001kΩ/0.001kΩ/0.01kΩ/0.0001MΩ/0.001MΩ/0.1M
Capacitance Range: 20nF/200nF/2000nF/2uF/20uF/200uF/2mF±(4%+50), 20mF/200mF±(10%)
Capacitance Resolution: 0.001nF/0.01nF/0.1nF/0.0001uF/0.001uF/0.01uF/0.1uF/0.001mF/0.01mF
Frequency Range: 200Hz~60MHz±(0.1%+3)
Frequency Resolution: 0.01Hz~0.01MHz
Temperature Range:
-40~40℃±4%, 40~400℃±(1%+5℃), 400~1000℃±(2%+5℃)
-40~104℉±5℉, 104~752℉±(1.5%+5℉), 752~1832℉±(2.5%+5℉)
Temperature Resolution: 0.1℃/℉
Conductance: 200nS±(1.2%+50)
Conductance Resolution: 0.01nS
Continuity Test: 200Ω
Continuity Test Resolution: 0.01Ω
Diode Test: 20V
Diode Test Resolution: 0.001V
Material: ABS
Range: Manual range
Display Count: 20000
Sampling Rate: 3 times/s
MAX/MIN: √
Peak Hold: √
LPF Measurement: √
Safety Ratings: CAT II 1000V, CAT III 600V
Power Supply: 4 * 1.5V AAA battery (NOT included)
Item Size: 189.4 * 89 * 53.8mm / 7.46 * 3.50 * 2.12in
Item Weight: 413g / 14.56oz
Package Weight: 515g / 18.17oz
Package Size: 21.5 * 16 * 6cm / 8.46 * 6.30 * 2.36in
Packing List:
1 * Multimeter
1 * Pair of Test Lead
1 * K-type Temperature Probe
