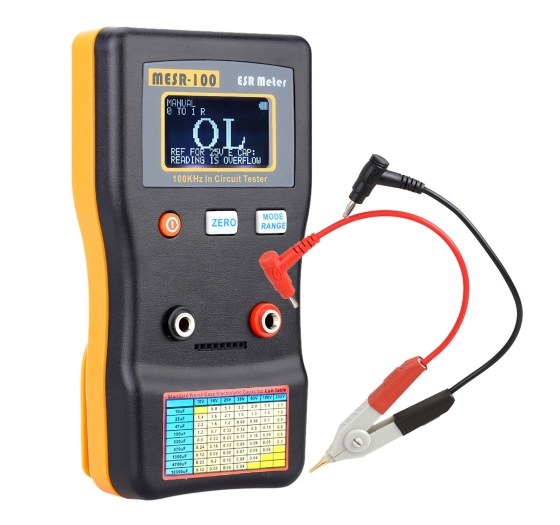

Handheld ESR Capacitor Tester Ohm Meter Professional Measuring Internal Resistance of Capacitor Capacitance Circuit Tester Capacitor Meter

Handheld ESR Capacitor Tester Ohm Meter Professional Measuring Internal Resistance of Capacitor Capacitance Circuit Tester Capacitor Meter

Be the first to review this item |Ask A Question

|Item#: E15875-2

| (0)

Price:

US$

110.57

Member Price：

Price on the app only:

Already have TOMTOP APP

Scan the product's code to buy directly!

Note: Please update TOMTOP App to the latest version.

Without TOMTOP APP?

Download freely and enjoy extra offers!

andriod ios
Ship From:
  • China Warehouse
  • United States Warehouse
Please select a warehouse
Dispatch:
Usually will be shipped in business days hours
Shipping:
The request failed! Please try again.
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

United States
Stock in: china

color:

Please select a color
QTY:

For each user order no more 5 item(s)

Special discount has ended

Please note each user for only 1 item(s)

Buy Now
Preorder Add To Cart Out of Stock

Arrival Notice

if the goods arrival in 90 days,we will inform you by email!

Email:

Arrival Notice

Notification Subscription Success!

if the goods arrival in 90 days,we will inform you by email!

Notification Subscription Failed!

Error appeared,Please try again later!
Arrival Notice

Buyer Protection

  • Full Refund If you don't receive your order
  • Full or Partial Refund , If the item is not as described Learn More >
This auto-ranging capacitor ESR and low Ohm meter measuring range from 0.001 to 100.0R, support in circuit testing. Using true 100 KHz sine wave to measure the ESR value, which is equal to the testing method of capacitor manufacturer.

Features:
It is a series resistor inside capacitor, using 100kHz to remove the impedance 1/(2*pi*F*C).
The impedance become small, and we can then measure the true series resistor value.
Using this theory, we can measure the capacitor is bad/ damaged or good in condition.
Our ESR meter only applies less than 15mV DC or peak to peak on a good capacitor, as a result we can use it as in circuit test.
During repairing TV, LCD, Audio board, etc. we can in circuit testing the capacitor is good or not.
Dual terminal, for fast and easy inspect internal resistance of the capacitor, a printed ESR table for fast check.

Note:
*The Capacitance Meter is used for testing the internal resistance of the capacitor, not for testing capacitance value.
*Batteries not included.

Specifications:
Color: Black
Type: Capacitor tester only / Capacitor tester with SMD clip(optional)
Range         Accuracy(After zero,     Refresh Time(Manual Mode)
            tested with 1,10,100R    Auto mode take 0 to 2s, more time
            resistor)            depends on capacitance value.
0.000 to 1.000R  1%+2Digit             ～0.4s
1.000 to 10.00R  1%+1Digit             ～0.4s
10.00 to 100.0R  2%+1Digit             ～0.4s
Accuracy: Up to 1% (detail on above table)
Wide Measurement Range: >1uF
High Resolution: 4 digit, or 0.001Ohm @ 1 Ω range
Measuring voltage: <～40mV RMS (TESTING VOLTAGE)
External Power: 5V micro USB
Operating Current: 0.02A
Battery: 2 * AA 1.5V Battery (not included)
Battery Life time: >80 Hours
Item Size: Approx 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in
Item Weight: Approx 139.6g / 4.9oz
Package Size: Approx 17 * 9 * 5cm / 6.7 * 3.5 * 2.0in
Package Weight: Approx 215g / 7.7oz

Packing List:
1 * Capacitance Meter
2 * Test Clips
1 * User Manual
