DDS Function Signal Generator Module DIY Kit Sine Square Sawtooth Triangle Wave

DDS Function Signal Generator Module DIY Kit Sine Square Sawtooth Triangle Wave

Price on the app only:

Already have TOMTOP APP

Scan the product's code to buy directly!

Note: Please update TOMTOP App to the latest version.

Don't have TOMTOP APP

Download freely and enjoy extra offers!

Ship From:
  • China Warehouse
Dispatch:
Usually will be shipped in business days hours
Shipping:
The request failed! Please try again.
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

United States
Stock in: china

color:

QTY:
Fitting of DIY, great for Arduino DIY project, exercise your hand and brain.

Features:
Delicated high speed (HS) signal output up to 8MHz.
DDS signal with variable amplitude and offset.
DDS signals: sine, square, saw, rev saw , triangle, ECG and noise.
2 * 16 LCD menu, intuitive 5 button keypad; Frequency adjusting steps: 1, 10, 1000, 10000MHz.
Restoring last configuration after power up.
Has two outputs-one for DDS signal and another for high speed aquare signal.
Power Supply: +5V / +12V / -12V.

Specifications:
Color: red
Material: PCB
Weight: 105g / 3.70oz
Size: 10 * 10 * 2cm / 3.15 * 3.15 * 0.79in ( L * W * H )

Packing List:

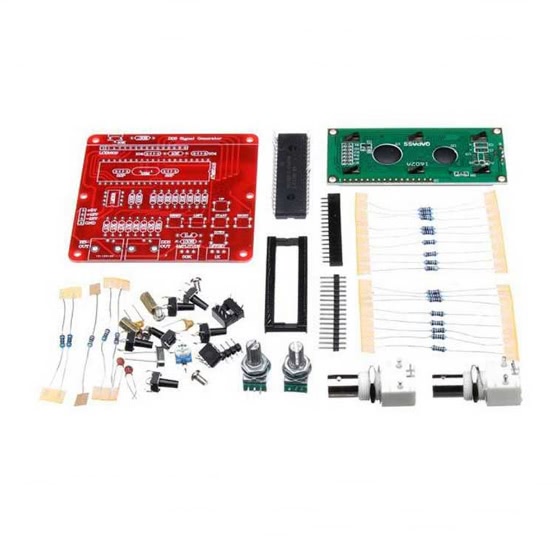

1 * PCB board
1 * LCD screen
1 * Chip
5 * Button switches
1 * Crystals
1 * Adjustable resistance
2 * Potentiometers
2 * Connectors
2 * Capacitors
20 * Resistors
