KKmoon® 4CH Channel Full AHD 1080N/720P 800TVL CCTV Surveillance DVR Security System

Features:

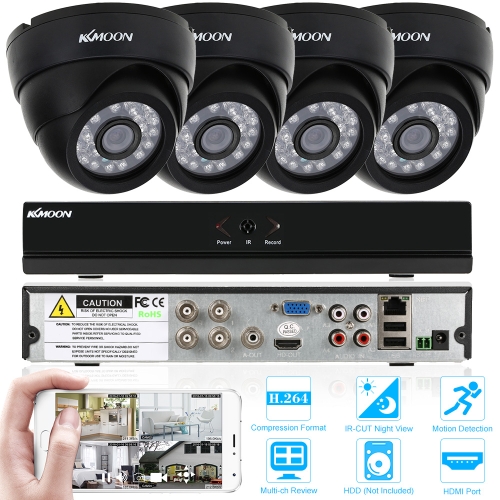

*Consist of 4CH full 1080N AHD DVR + 4*800TVL infrared camera + 4*60ft cable for CCTV security system.
*Support 4channel 1080N/720P analog cameras preview, record, playback, etc.
*Multiple ways to access on the PC, phone/pad and browser via softwares on CD.
*Support motion detection record and email alarm notification.
*Plug and play use, no need any complex installation.


DVR Specifications:
Processor: Hi3520D chip
Operating System: Embedded Linux System
Menu Display: 1/4 Screen
Signal System: PAL/NTSC optional
Frame Rate: 1-25fps (PAL), 1-30fps (NTSC)
Record Resolution: Full 1080N/720P/960H/D1
Compression Format: H.264
Analog Input: 4*1080N/720P/960H
Network Input: 8*1080P/720P
Hybrid Input: 2*720P (analog) + 2*720P (IPC)
Max Sync Playback: 4channel 1080N
Record Mode: Manual/Scheduled/Motion Detection
Pre Record: 0-30s; Post Record: 0-300s
Region Cover: Support 4 areas block
Digital Zoom: support; Dual stream: support
Video Input: 4ch BNC; Video Output: 1ch VGA
Audio Input: 4ch RCA; Audio Output: 1ch RCA
Network Protocol: Onvif, HTTP, DHCP, PPPOE, DDNS, SMTP, FTP, RTSP
OSD Language: English, German, French, Spanish, Italian, Japanese, Portuguese, Russian, etc
DVR Resolution: 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768
Phone/Pad APP: support Android/iOS OS
APP Name: XMEye (can download on APP store or Google Play)
PC Software: support windows xp, win7, win8, win10, etc
Browser: support IE, Safari, Chrome, Firefox, etc
Online CD: www.cd-ipc.com (contain softwares and detailed E-manual)
DVR Size: 26.1*21.2*4.5cm / 10.28*8.35*1.77in
DVR Weight: 775g / 1.71Lb


Camera Specifications:
Image Sensor: 1/4inch CMOS
Signal System: PAL system
Horizontal Resolution: 800TVL
Light Sensor: Built-in
IR Led: 24pcs, auto on/off
IR-CUT Filter: Built-in
Mini Illumination: 0 lux (IR on)
Focus: 3.6mm fixed lens
Night Vision Distance: 5-15m
Material: ABS plastic
Camera Size: 9.3*9.3*7cm / 3.66*3.66*2.76in
Camera Weight: 149g / 5.26oz


Package List:
1 * 4CH Full 1080N DVR (NO HDD)
4 * 800TVL Indoor Camera
4 * 60ft CCTV Cable
1 * Remote Control (2*AAA battery excluded)
2 * Power Supply
1 * 1 to 4 Split Cable
1 * USB Mouse
4 * Bag of Screws for Camera Mounting
1 * Bag of Screws for HDD Installation
4 * Warning Sign
1 * CD (contain softwares and detailed E-manual)
1 * User Manual (English/German)

Note: If you can not open the URL of online CD, please feel free to contact us, and we will send the software and detailed manual to you separately (www.cd-ipc.com)
