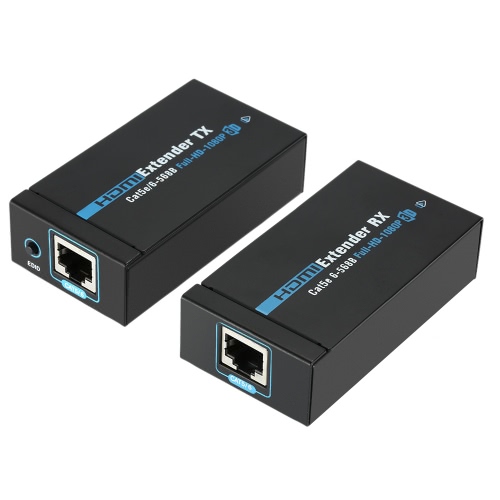

ANQ-E60 60M HD Extender 1080p 3D HD Transmitter Receiver over Cat 5e/6 RJ45 Ethernet Converter

ANQ-E60 60M HD Extender 1080p 3D HD Transmitter Receiver over Cat 5e/6 RJ45 Ethernet Converter

Price on the app only:

Already have TOMTOP APP

Scan the product's code to buy directly!

Note: Please update TOMTOP App to the latest version.


Download freely and enjoy extra offers!

Ship From:
  • China Warehouse
  • Germany Warehouse
  • France Warehouse
  • Spain Warehouse
Please select a warehouse
Usually will be shipped in business days hours
The request failed! Please try again.
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.


Ship to

United States
Stock in: china


  • us
  • eu
Please select a plug

For each user order no more 5 item(s)

Special discount has ended

Please note each user for only 1 item(s)

Preorder Add To Cart Out of Stock

Arrival Notice

if the goods arrival in 90 days,we will inform you by email!


Arrival Notice

Notification Subscription Success!

if the goods arrival in 90 days,we will inform you by email!

Notification Subscription Failed!

Error appeared,Please try again later!

Arrival Notice

Buyer Protection

  • Full Refund If you don't receive your order
  • Full or Partial Refund , If the item is not as described Learn More >
The for HD Extender use single cat-5E or cat-6(recommended) cables up to 60 meters instead of for HD cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because for HD cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

ANQ-E60 Features:
Transceiver HD audio and video by Cat5e or Cat6 network cable instead of for HD cable.
Cat5e or Cat6 meet IEEE-568B standard. You can decide the cable length by yourself easily. And it is fit to cable route in construction.
It can auto-equilizer. It can fit with both short and long cable..
It support HD 1.3. No video compression or decompression while transceivering.
It support high definition up to 1080P/60Hz, 3D.
Its clock frequency is up to 165MHz. And Band width up to 4.95Gbps.
It support 8 bit deep color.
It supports compressed and uncompressed audio.
1. To get high quality video, please choose high quality network cable. The transceiver distance is directly decide by the quality of the network cable.
2. Do not shake the HD cable head while connect the device with HD cable.
3. Please use the power adapter correctly.

ANQ-E60 Specification:
Model: ANQ-E60
Length of CAT-6 cable between Rx and TX: Up to 60 meters
For HD Input: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support audio format input: DTS-HD / Dolby-true HD / LPCM7.1 / DTS / Dolby-AC3 / DSD
HD Output: 24 / 50 / 60fs / 1080p / 1080i / 720p / 576p / 576i / 480p / 480i
Support audio format output: LPCM7.1 / DTS / Dolby-AC3 / DSD
Max bandwidth: 165MHz
Max baud rate: 4.95Gbps
Input Video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TT1L)
Input / Output for HD cable distance: ≤20m AWG26 HD standard cable
Max working current: 1000mA
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V / 1A
Main Item Size: Approx. 7.8 * 4.2 * 2.2cm / 3.07 * 1.65 * 0.87in
Main Item Weight: Approx. 104g / 3.68oz
Package Size: Approx. 20 * 14.3 * 5.2cm / 7.87 * 5.63 * 2.05in
Package Weight: Approx. 402g / 14.18oz

ANQ-E60 Package list:
1 * Transmitter
1 * Receiver
2 * 5V DC Power Adapter
1 * User Manual
