Original Mode 2 Orange RadioLink AT10 2.4G 10CH Remote Control System Transmitter w/ R12DS Receiver & PRM-01 Voltage Return Module

One of the fastest remote control as so far. Most completed function and model type integration frequency 2.4GHz, response time 3ms. Mode 2（left hand throttle）is comfortable for some special players. Just come and get it!



Features:
Multiple function remote control system, including helicopter, airplane and slider three type flying machine and five models, cover almost every popular model, you can fly any model by this radio

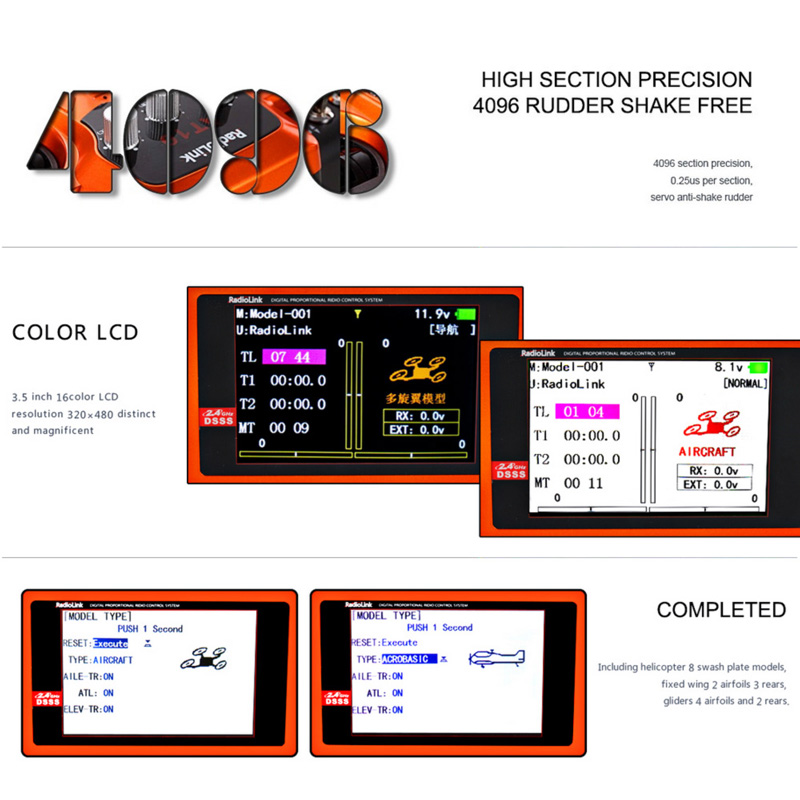

3.5 inch colorful screen 320×480 resolution, clear display menu and graphs

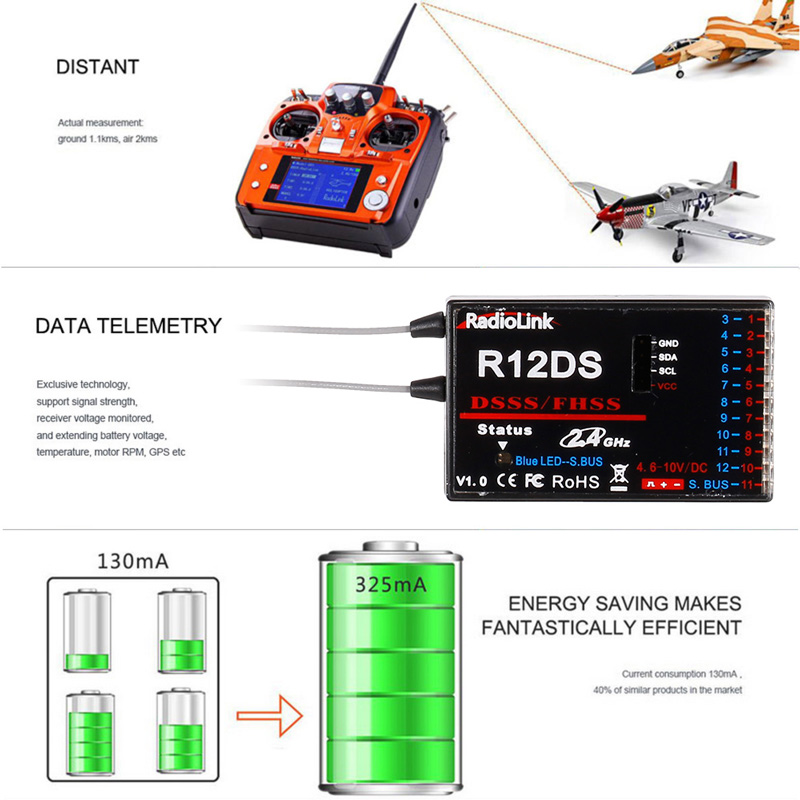

Great control distance: 1.1km on the ground, 2km in the sky
Expansion feedback module, users can get plane details in real time
Make very setting clear and exactly output result
Fast response time only 3ms to the operation, faster then the other transmitter 20ms, even ten channels also let you feel it
High channel resolution reaches 4096, 0.25us per resolution let all the servos keep tranquil
Strong anti-jumping, DSSS(Direct sequence spread spectrum) technology
Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution, one and the only one anti-jumping DSSS technology, really worthy to have it

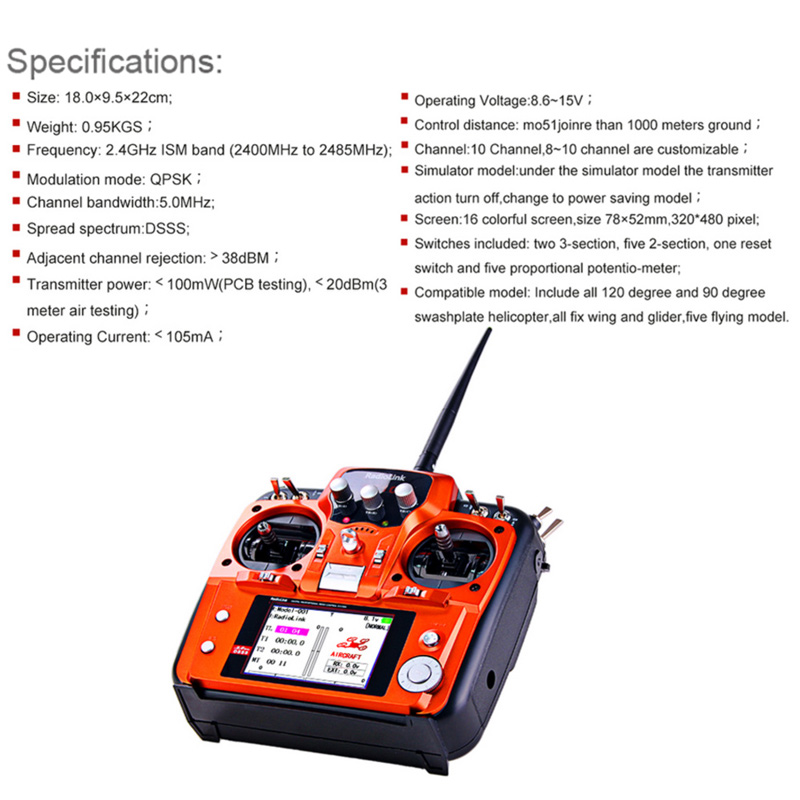

Specifications:
Frequency: 2.4GHz ISM band (2400MHz~2485MHz)
Modulation mode: QSPK
Channel bandwidth: 5.0MHz
Spread spectrum: DSSS
Adjacent channel rejection: ＞38dBM
Transmitter power: ＜100mW(PCB testing);＜20dBm(3 meter air testing)
Operating Voltage: 8.6~15V
Operating Current: ＜95mA
Control distance: 800 meters ground
Channel: 10 Channel, 8~10 channel are customizable
Compatible model: Include all 120 degree and 90 degree swashplate helicopter, all fix wing and glider, five flying model
Simulator model: under the simulator

Receiver:
Channels: 12 channels
Support S-BUS and PWM signal output synchronously
Working voltage: 4.8-10V
Working current: 38-45mA（input voltage: 5V）
Size: 50 * 31.5 * 14.5mm
Weight: 15g
Control distance: about 4 kilometers air

Package Information:
Package size: 33 * 26 * 11.6cm / 13 * 10.2 * 4.6in
Package weight: 1043g / 2.3lb

Note: Transmitter is Mode 2 (Left Hand Throttle)

Package list:
1 * Orange RadioLink AT10 10CH Transimitter (Mode 2)
1 * R12DS 12Ch Receiver
1 * PRM-01 Voltage Return Module
1 * 4Pin Connector
