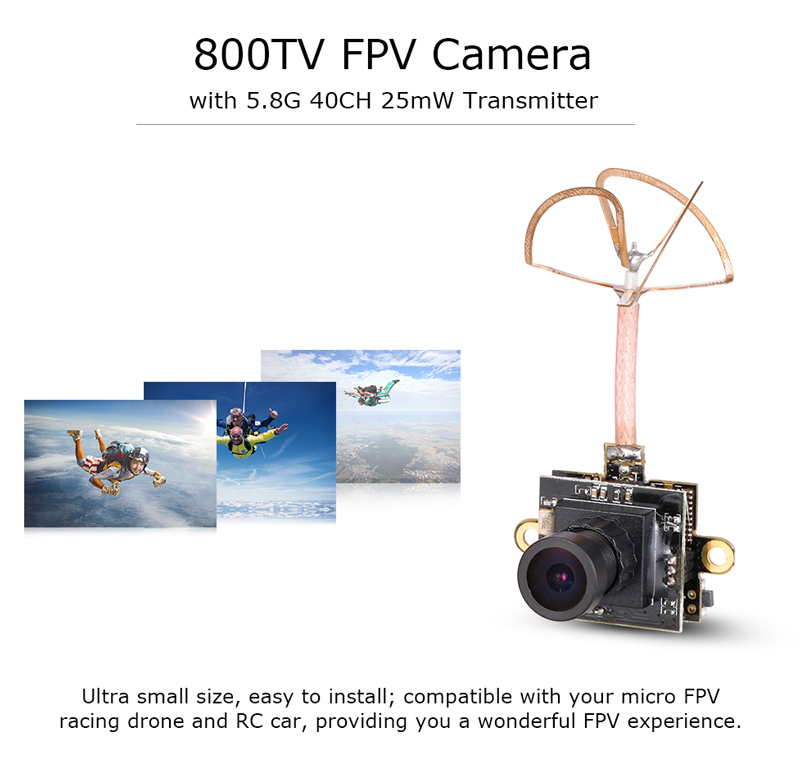

JF-001 800TV FPV Camera NTSC/PAL with Fixing Mount 3.7V 600mAh Lipo Battery Kit for Racing Drone Quadcopter Aerial Photography Car Video Recorder



Features:
Integrated camera and 25mW 40CH transmitter.
NTSC and PAL format selectable by button.
Wide angle lens, 150° FOV horizontal angle, 170° DFOV opposite view angle.
The fixing mount bracket and screw set is used to install the camera on your quadcopter, very easy and convenient.
Advanced image sensor ensuring high quality FPV effect.
low power consumption, ultra small size, easy to install; compatible with micro FPV racing drone, RC Climbing car, high speed cross-country car etc.
800TVL HD camera with 5.8G 40ch transmitter provide you with a clean image and reliable link to your FPV goggles or monitors (not included).

Specification:
Name: JF-001 FPV camera kit
Image sensor: 1/3" CMOS
Resolution: 800TVL
Angle: 150° FOV horizontal angle
           170° DFOV opposite view angle
Lens diameter: 2.1mm IR coated FOV150°
Signal system: NTSC/PAL(one key switch)
Operating voltage: 3.6V to 5.5V
Power consumption: 380mA＠3·7V
Transmitter output power: 25mW
Frequency: 5.8GHz 5 bands 40 channels
Antenna: 5.8g band circular polarization clover leaf
Output impedance: 75 Ohm
Intensity of the output signal: 23~24dBm
Sound carrier: 6.5MHz
Supply current: 100mA
Battery: 3.7V 600mAh Lipo
Battery dimension: 43 * 25 * 8mm
Camera weight: About 6.3g

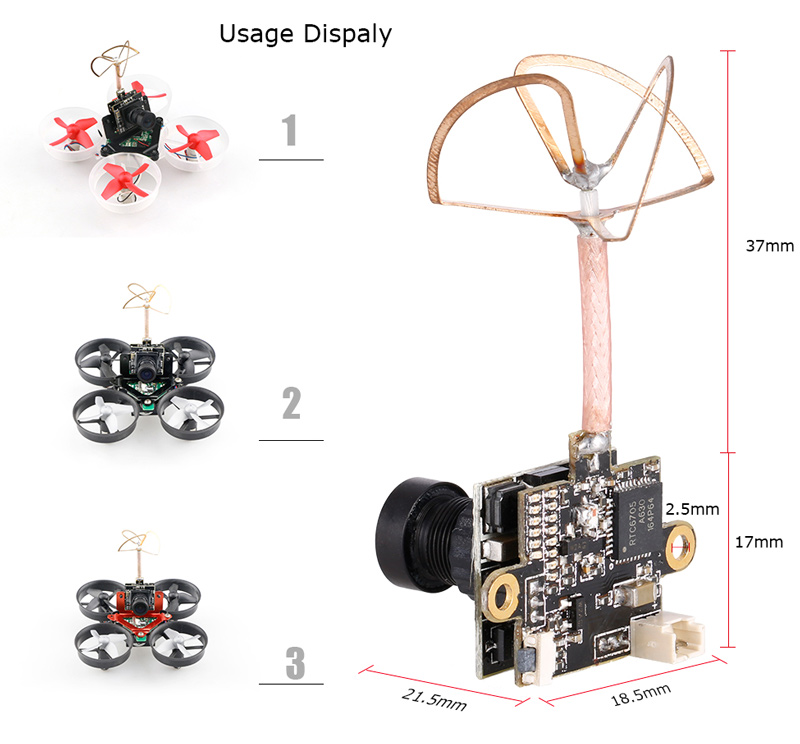

Product size: 21.5 * 18.5 * 17mm (antenna excluded)

Frequency:
Band A : 5865,5845,5825,5805,5785,5765,5745,5725
Band B : 5733,5752,5771,5790,5809,5828,5847,5866
Band E : 5705,5685,5665,5645,5885,5905,5925,5945
Band F : 5740,5760,5780,5800,5820,5840,5860,5880
Band R : 5658,5695,5732,5769,5806,5843,5880,5917

There may be some deviation due to manual measurement.

Package Information:
Package size: 7.1 * 5.2 * 3cm / 2.79 * 2.04 * 1.18in
Package weight: 36g / 1.25oz
Poly bag package

Package List:
1 * Camera
1 * Camera Bracket
1 * 3.7V 600mAh Lipo Battery
1 * Charging Adapter Cable
1 * Magical Sticker
1 * Set of Screw
