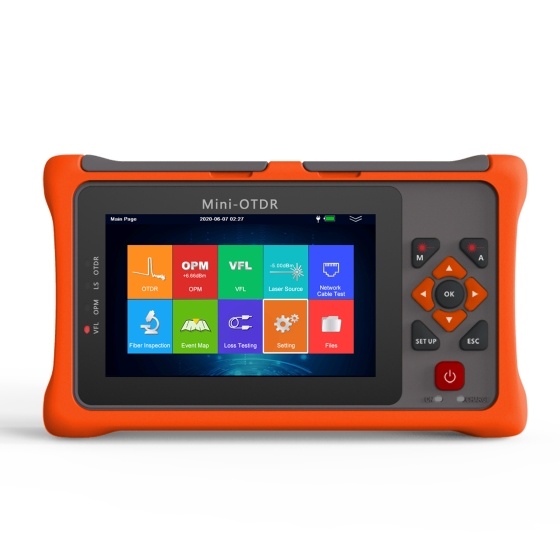

This tool is an portable optical time domain reflector, it is in small size, so you can take it to anywhere you want to use it easily, with 4.3inch touchable screen, which can give you a better using experience, support horizontal version, vertical version, perfect fu-sion of the two habits of user operations, come on and try it, it will not let you down.
Features：
With 4.3inch touchable screen, so you can operate it and see the data more clearly and convenient.
9 in 1 function: OTDR, OPM, VFL, LS, Network cable test, fiber inspection, event map, loss test, flashlight.
With the cover plate type tempered glass panel, don't worry about screen scratch.
Support horizontal version and vertical version, which is perfect fu-sion of the two habits of user operations, which can give you a better using experience.
In line with the international standards of test data with perfect simulation software, which can makes your report more simple.
With the data export pro-tection function, it support thr U disk, memory card and Micro USB cable.
CPU frequency 1GHz, equipped with 1g DDR and 8g memory card, which can give you a better using experience.
Specifications:
Material: ABS+PCB
Color: white, orange (optional)
Measuring range: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km/90km
Sampling resolution: Minimum: 0.2m
The sampling point: 64,000 point
linearity: ≤0.05dB/dB
Loss threshold: 0.01dB
Loss resolution: 0.001dB
Range resolution: 0.01m
Range accuracy: ±(0.5m+Range×3×10-5+Sampling resolution) （Excluding refractive index error）
Memory: >100000
VFL: 10mW，CW/2Hz
Battery: 1 * lithium battery, 5200mAh (included)
Working temperature: -10℃~55℃
Storage temperature: -20℃~80℃
Humidity: ≤95%（no condensation）
Network cable test: Support network wire sequence testing and wire alignment
Dual wavelength sequence:
Wavelength（nm): 1310/1550
Dynamic range（dB): 24/22
Measuring range（km): 80
Item size: 175 * 105 * 45mm / 6.9 * 4.1 * 1.8in
Item weight: 560g / 1.2lb
Package size: 210 * 150 * 70mm / 8.3 * 5.9 * 2.8in
Package weight: 1000g / 2.2lb
Packing list:
1 * Optical Time Domain Reflector (optional)
1 * Power Adapter
1 * F/C Adapter
1 * USB Cable
1 * Quick Guide
1 * Bag
