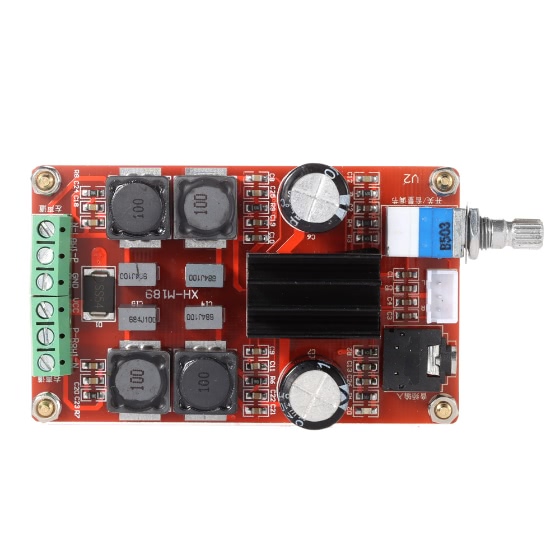

TPA3116D2 2*50W Digital Power Amplifier Board Class D DC12V 24V Dual Channel Audio Stereo AMP

TPA3116D2 2*50W Digital Power Amplifier Board Class D DC12V 24V Dual Channel Audio Stereo AMP

Price on the app only:

Already have TOMTOP APP

Scan the product's code to buy directly!

Note: Please update TOMTOP App to the latest version.

Don't have TOMTOP APP

Download freely and enjoy extra offers!

Ship From:
  • China Warehouse
Dispatch:
Usually will be shipped in business days hours
Shipping:
The request failed! Please try again.
Sorry, it seems that there are no available shipping methods for your location.Please contact us for further assistance.

Loading...

Ship to

United States
Stock in: china
QTY:
The amplifier board adopts high quality TPA3116D2 digital amplifier chip, which features clear sounds, small size, high efficiency and high power.

Features:
Adopts TPA3116 stereo audio power amplifier chip.
Sound quality is very clear, strong amplifying power.
Dual channel 2*50W, high efficiency and low-heat.
Powered by DC 5-24V(best for 24V), wide input voltage.
With reverse power supply protection and horn output short-circuit protection.
Just connect the power supply and loudspeaker box, enjoy the pure digital music!

Notice:
This amplifier board must be powered by DC power(DC5-24V), it's better to use high-performance switch power. Don't use transformer!


Specifications:
Supply Voltage: DC 5-24V(Best for 24V)
Chip: TPA3116
Audio Type: Class D
Channel Type: Two-channel Stereo
Output Power: 2*50W
Output Match: 4-8 ohm
Frequency Response Range: 20Hz-20Hz
SNR: 100dB
PCB Board Size: 84 * 51 * 29mm / 3.3 * 2 * 1.14in (L * W * H)
Weight: 63g / 2.23oz
Package Size: 13.5 * 11 * 5cm / 5.31 * 4.33 * 1.97in (L * W * H)
Package Weight: 113g / 4oz

Package List:
1 * Digital Amplifier Board
1 * Audio Cable
Customer Reviews

Average Rating:

5

based on 2 Customer Reviews

  • 5 stars
    100%
  • 4 stars
  • 3 stars
  • 2 stars
  • 1 stars

Share your thoughts with other customers and get Tomtop Points, the first 5 reviews get DOUBLE Tomtop Points!

Write a Customer Review
  • By florian g.

    July 14, 2016

    Je ne pensais pas qu'une aussi petite bête pouvait envoyer autant :o Personnellement pour mes tests je l'alimente avec un cable USB sur une alimentation de 2A 5V et ça marche parfaitement (en tout cas pour la puissance que je veux). Aucun souffle quand il n'y a aucun son. Le bouton pour régler le volume permet aussi de couper l'alimentation. Enfin bref ce produit est vraiment bien ! PS: regardez les autres vendeurs, il y en a avec la livraison gratuite :p (délai 10 jours)

    Is this helpful? (0) (0)

  • By s. cyril

    April 28, 2016

    Vraiment un super produit Pas de souffle quand la source n'envoie rien (branché sur un chromecast et deux enceintes plafond de 8 Ohms 60W). J'ai testé d'autres modèles qui génèrent du souffle en permanence même si la source est inactive, ici c'est parfait. La puissance est impresssionnante comparée à la taille de la carte Et ça ne chauffe vraiment pas Je pense que je vais en prendre un autre pour les enceintes plafond de la chambre :)

    Is this helpful? (0) (0)
